M9220-BGC-3 | DAMPER ACTUATOR 20 NM SR; 20 NM SR DPR ACT ON-OFF 24 VAC 50/60 HZ 24 VDC 2 AUX SWITCHES | Johnson Controls

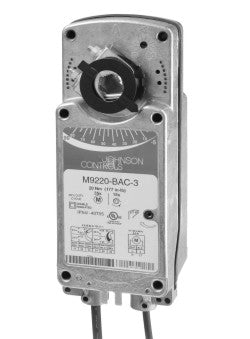

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for M9220-BGC-3

DAMPER ACTUATOR 20 NM SR; 20 NM SR DPR ACT ON-OFF 24 VAC 50/60 HZ 24 VDC 2 AUX SWITCHES

The M9203-Bxx-2(Z) Series On/Off Electric Spring Return Actuators are direct-mount actuators that operate on AC 24 V power at 50/60 Hz, DC 24 V power, or AC 85 to 264 V power at 50/60 Hz. These bidirectional actuators do not require a damper linkage, and are easily installed on round shafts from 1/4 to 1/2 in. (6 to 12 mm) or square shafts from 1/4 to 5/16 in. (6 to 8 mm) using the standard shaft clamp included with the actuator.

Damper Actuator
24 VAC/VDC
On/Off
Spring Return
177 in-lb Torque
48 in. Appliance Cable
2 x SPDT
24..57 sec Runtime
NEMA 2
0101 - 0200 IN-LB

Specifications

Item Number	M9220-BGC-3
Brand	Johnson Controls
Actuator Type	Damper
Category	Dampers & Actuators
Control Input	On/Off
End Switch	Yes
Housing	NEMA 2
Section	Electric Actuators
Section	Valves & Actuators
Spring Return	Spring Return
SubCategory	Electric Actuators
Torque	177 in-lb
Voltage	24V
