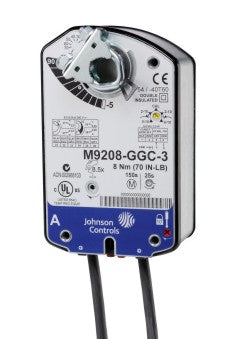

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M9208-GGA-3

Documents and manuals

Johnson Controls M9208-GGA-3 Documents

Overview

Details for M9208-GGA-3

ACT ROTARY PROPORTIONAL; 70LB-IN (8NM) SPRING RETURN ACT PROP AC/DC 24V

Description

The M9208-xxx-x Series Electric Spring-Return Actuators provide control of dampers in HVAC systems. All actuators in this series provide 70 lb·in (8 N·m) rated torque. A mechanical spring-return system provides rated torque with and without power applied to the actuator. The series includes the following control options:

  • On/Off, 24 V, 120 VAC, 230 VAC power
  • On/Off and Floating Point, 24 V power
  • Proportional, 24 V power, for 0(2) to 10 VDC or 0(4) to 20 mA Control Signal

These actuators are configured for direct mounting and do not require a damper linkage. Actuators can be mounted directly to a damper shaft from 5/16 to 5/8 in. (8 to 16 mm) diameter with a universal clamp. For shafts up to 3/4 in. (19 mm) diameter, use the accessory Large Shaft Coupler Kit M9208-600. An accessory crankarm and remote mounting kit are available for applications where the actuator cannot be direct coupled to the damper shaft. Optional line voltage auxiliary switches indicate an end-stop position or perform switching functions within the selected rotation range. Code No. LIT-1900562 Issued November 2017 Refer to the M9208-xxx-x Series Electric Spring-Return Actuators Product Bulletin (LIT-12011480) for important product application and single point of contact information.

Features

  • 70 lb·in (8 N·m) rated torque
  • direct-coupled design
  • reversible mounting
  • electronic stall detection
  • double-insulated construction
  • microprocessor-controlled brushless DC motor (-AGx and -GGx types)
  • external mode selection switch (-AGx and -GGx types)
  • locking manual override with auto release and crank storage
  • integral cables with colored and numbered conductors
  • integral connectors for 3/8 in. (10 mm) Flexible Metal Conduit (FMC)
  • optional integrated auxiliary switches
  • UL, CE, and C-Tick compliance
  • manufactured under International Standards Organization (ISO) 9001 quality control standards
  • 5-year warranty

  • Damper Actuator
  • 24 VAC/VDC
  • Proportional [0(2)..10 VDC]
  • Spring Return
  • 70 in-lb Torque
  • 48 in. Appliance Cable
  • 150 sec Runtime
  • NEMA 2
  • 0051 - 0075 IN-LB

Specifications

Item Number M9208-GGA-3
Brand Johnson Controls
Actuator Type Damper
Category Dampers & Actuators
Control Input Modulating
End Switch No
Housing NEMA 2
Section Electric Actuators
Section Valves & Actuators
Spring Return Spring Return
SubCategory Electric Actuators
Torque 70 in-lb
Voltage 24V
