M9208-GGA-2 | ACT ROTARY PROPORTIONAL; 70LB-IN (8NM) SPRING RETURN ACT PROP AC/DC 24V PLENUM USE | Johnson Controls

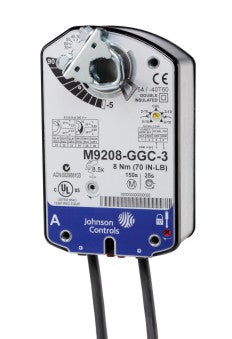

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for M9208-GGA-2

ACT ROTARY PROPORTIONAL; 70LB-IN (8NM) SPRING RETURN ACT PROP AC/DC 24V PLENUM USE

The M9208-GGx-x Series Proportional Electric Spring Return Actuators are direct-mount actuators that operate on AC/DC 24 V power. These bidirectional actuators do not require a damper linkage, and are easily installed on round shafts from 5/16 to 5/8 in. (8 to 16 mm) or square shafts from 1/4 to 1/2 in. (6 to 12 mm) using the standard shaft clamp included with the actuator. An optional M9208-600 Large Coupler Kit is available for round shafts from 1/2 to 3/4 in. (12 to 19 mm) or square shafts from 3/8 to 9/16 in. (10 to 14 mm).

Damper Actuator
24 VAC/VDC
Proportional [0(2)..10 VDC]
Spring Return
70 in-lb Torque
48 in. Appliance Cable
150 sec Runtime
NEMA 2
0051 - 0075 IN-LB

Specifications

Item Number	M9208-GGA-2
Brand	Johnson Controls
Actuator Type	Damper
Category	Dampers & Actuators
Control Input	Modulating
End Switch	No
Housing	NEMA 2
Section	Electric Actuators
Section	Valves & Actuators
Spring Return	Spring Return
SubCategory	Electric Actuators
Torque	70 in-lb
Voltage	24V
