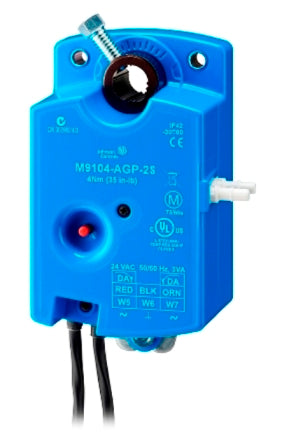

M9104-AGP-2S | ACTUATOR;ROTARY;FLOATING; ACTUADOR;ROTARY;FLOATING | Johnson Controls

ACTUATOR;ROTARY;FLOATING; ACTUADOR;ROTARY;FLOATING

The M9102 and M9104 Series Actuators are direct‑mount, non‑spring‑return electric actuators that operate on AC 24 V power. These synchronous motor‑driven actuators provide floating control (AGA), floating control with automatic shutoff (IGA), and proportional control with selectable 0‑10 or 2‑10 VDC (GGA). The ‑2S models are equipped with plenum cables, and the ‑3S models are equipped with terminal blocks. All models are compact in size and are easily installed on VAV boxes, Variable Volume and Temperature (VVT) two‑position zone applications, or small‑ to medium‑sized dampers with a round shaft up to 1/2 in. (13 mm) in diameter or a 3/8 in. (10 mm) square shaft.

• Damper Actuator
• 20..30 VAC
• Floating Point w/o Timeout
• Non-Spring Return
• 35 in-lb Torque
• 48 in. Plenum Cable
• 60 sec Runtime
• NEMA 1
• Pressure Sensor For VAV Applications
• 0026 - 0050 IN-LB
