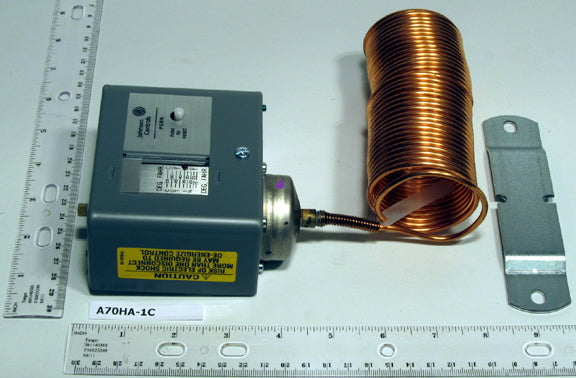

A70HA-1C | TWO CIRCUIT TEMP CONTROL; 15/55F; DIFF 5 FIXED; 1NO/1NC MAIN OPEN LOW; 1/8 X 20' BULB; | Johnson Controls

TWO CIRCUIT TEMP CONTROL; 15/55F; DIFF 5 FIXED; 1NO/1NC MAIN OPEN LOW; 1/8 X 20' BULB;

Description

The A70 Series Temperature Control incorporates a vapor-charged sensing element. The A70G, A70H, and A70K have a four-wire, two-circuit contact block that contains two isolated sets of contacts.

The contacts are designed so that when the main contact opens, the auxiliary contact closes.

Features

• long-life, snap-acting contacts
• automatic or manual reset models Applications Typical applications include energizing an indicator light after a low temperature cutout on a ventilating system.

• Two Circuit Temp Control
• 15/55 F
• Diff 5 Fixed
• NO/NC Main Open Low
• 1/8 x 20 ft Bulb
• Manual Reset
