A19ACA-14C | REMOTE BULB TEMP CONTROL; MANUAL RESET; 6' CAP; SPST; NEMA 1; 3/8 X 4" BULB; OPEN LOW | Johnson Controls

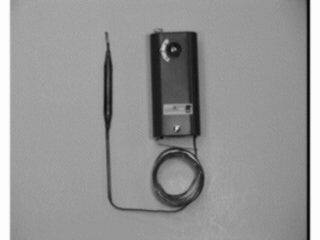

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A19ACA-14C
Documents and manuals
Johnson Controls A19ACA-14C Documents
Overview
Details for A19ACA-14C
REMOTE BULB TEMP CONTROL; MANUAL RESET; 6' CAP; SPST; NEMA 1; 3/8 X 4" BULB; OPEN LOW
Johnson Controls A19 Series temperature controls are designed to cover a broad range of uses for heating and general purpose requirements. Controls have SPST contacts which open on temperature increase or they may be supplied in single-pole, double-throw contact action. Various control ranges are available to cover working temperatures from -30 to 550° F (-34 to 288° C). Closed tank fittings and bulb wells are available for immersion applications. These controls are designed for open low and open high applications. Where critical or high value products are to be maintained within a specific temperature differential, a single control should not be applied to function as both an open low and open high control. In these applications, a separate backup control with alarm contacts should be wired to indicate when the back-up control operates.- Remote Bulb Control
- Single Stage
- Manual Reset
- SPST Open Low
- Range -30-100°F/-34-38°C
- 3/8" x 4" Bulb, 6 ft. Capillary
- Screwdriver Slot
- Max Bulb Temp 140°F/60°C
Specifications
Item Number | A19ACA-14C |
Brand | Johnson Controls |
Category | Thermostats & Controllers |
Section | Bulb Temperature Controller |
SubCategory | Bulb Temperature Controller |
