Get Special Pricing!
A-4000-141 | FILTER STATION; REDUCING; & OIL REMOVING; SINGLE PRESSURE; 20CFM MAX | Johnson Controls

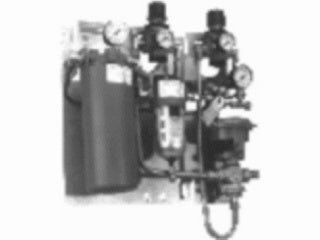

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A-4000-141
Documents and manuals
Johnson Controls A-4000-141 Documents
Overview
Details for A-4000-141
FILTER STATION; REDUCING; & OIL REMOVING; SINGLE PRESSURE; 20CFM MAX
The A-4000 Series Oil Removal and Pressure Reducing Stations (see Figs. 1 through 4) are available in single or dual PRV models in 10 or 20 SCFM (4.7 or 9.4 L/s) maximum flow capacities. In addition, each unit features a four-way bypass valve, coalescing and activated charcoal oil removing filters, and is completely piped with copper tubing which reduces friction, allows higher flow rates, and meets fire codes in mechanical equipment rooms. The filter combination removes both oil aerosols and vapors to provide clean, oil free air for pneumatic control systems. All models provide maximum performance for a period of one year at which time the coalescing and activated charcoal filter elements will need to be replaced. Gauges are provided to monitor system operations and performance. All models can provide filtered, high pressure air to remote PRV stations. All models have a maximum input pressure rating of 150 PSIG (1050 kPa) and an upper temperature limit of 120°F (52°C).- A-4000-141 Oil Removal and Pressure Reducing Station
- 0 - 150 PSIG Pressure Range
- 23 scfm Air Flow
- Single PRV
Specifications
Item Number | A-4000-141 |
Brand | Johnson Controls |
Category | Dryer & Air Compressor Accessories |
Section | Pressure Reducing Station |
SubCategory | Pressure Reducing Station |
Type | Oil Removal Filters |
