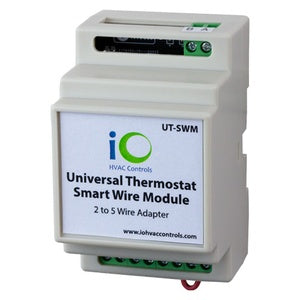

iO HVAC Controls | UT-SWM
The photo is for representation purposes only and may not be a photo of product being purchased.

UT-SWM | Universal Thermostat Smart Wire Module - 2 to 5 Wire Adapter | iO HVAC Controls

SKU: UT-SWMBrand: iO HVAC ControlsCondition: New

Details for UT-SWM

Universal Thermostat Smart Wire Module - 2 to 5 Wire Adapter

Universal Thermostat Smart Wire Module - 2 to 5 Wire Adapter

Brand: iO HVAC ControlsSKU: UT-SWM
$105.97
Availability: This product is currently available
Orders over $999 ship FREE
Shipping and Returns Terms

iO HVAC Controls UT-SWM Documents

Details for UT-SWM

Universal Thermostat Smart Wire Module - 2 to 5 Wire Adapter

Description


The UT-SWM, Universal Thermostat Smart Wire Module is an innovative and low-cost solution for any application where you need to control up to five (voltage free) digital outputs and only have a single pair of wires between two locations such as a thermostat and HVAC system. Today’s communicating thermostats need a “common wire” to power the radio module and other electronics. On average, 30% of all homes do not have a common wire at the thermostat. The UT-SWM uses two advanced microprocessors; one located in the Sender Module and the other in the Relay Receiver Module. Signals from the device connected to the Sender Module such as a thermostat are encoded along with checksum data to ensure accuracy and superimposed onto the 24VAC signal wires that transmit to the Relay Receiver Module. The Relay Receiver Module then decodes and verifies the binary data and turns relays on or off to match the Sender Module information.

Features and Benefits

  • Reduces installation costs by not having to pull additional wire
  • Allows up to five digital outputs to be sent on the 24 volt signal wires
  • Supports both heat pump and conventional HVAC systems
  • Compatible with virtually all major thermostat brands
  • Includes compact sender module and relay receiver module

Warranty: 5 years

Specifications

Power Supply 24VAC +/- 20%
Power Consumption 0.15mA (No Relays), 0.45mA (All Relays On)
Maximum Load Current 0.5 Amp @24VAC
Relays Switching Current 5 x 1 Amp (Volt Free)
Maximum Range 250 Feet
Transmission Lag Up to 5 Seconds
Temperature 122°F (150°F Storage)
RH 95% (Non Condensing)
