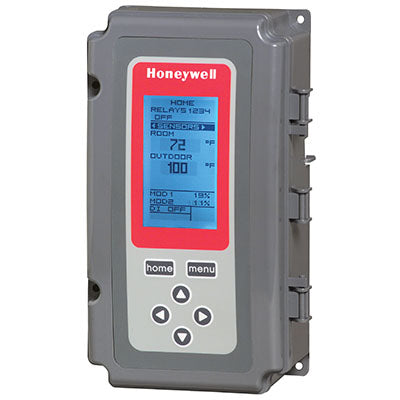

T775M2048 | ELECTRONIC TEMPERATURE CONTROLLER WITH 2 TEMP INPUTS, 2 SPDT RELAYS, 2 ANALOG OUTPUTS, 1 SENSOR INC LUDED. | Honeywell

The Honeywell T775M2048 is a versatile, modulating electronic temperature controller ideal for commercial and agricultural applications demanding precise temperature regulation and remote sensing. This advanced controller boasts a user-friendly interface, sophisticated features, and robust construction, ensuring reliable performance in demanding environments. It eliminates the need for separate modules, offering cost savings and streamlined installation.

Key Features:

• Intuitive Control: Features an easy-to-use graphical interface, a large backlit digital display (2.5" x 1.5", configurable °F or °C), and intuitive menu-driven programming for quick setup and operation. A simple programming lock enhances security. The program is non-volatile; time is retained for 24 hours.
• Energy Efficiency: Includes a seven-day time clock scheduler and a digital input for setback and output disable options to optimize energy consumption.
• Comprehensive Protection: Models with modulating high/low limit control prevent equipment from freezing or overheating. A minimum off-time feature protects equipment and eliminates the need for a separate time delay device.
• Precise Modulation: Offers adjustable integral and derivative times (PI or PID control) for pinpoint control of modulating outputs. Proportional plus integral (PI) or proportional, integral, and derivative (PID) control are available for analog output controllers. Relay output controllers feature adjustable differential control algorithms. Analog output controllers have adjustable throttling range.
• Versatile Outputs: Provides 2 SPDT relays and 2 analog outputs (selectable from 4-20mA, 0-10Vdc, 2-10Vdc, and Series 90) for flexible system integration. It can control floating actuators with floating outputs (on select models).
• Remote Sensing Capability: Two sensor inputs allow for remote temperature monitoring up to 1000 feet away. Sensor B can support a high/low modulating limit for temperature control at Sensor A.
• Durable Construction: Available in NEMA 1 and NEMA 4X enclosures to withstand various environmental conditions. (Specify enclosure type for this SKU).
• Included Sensor: Includes a T775-SENS-WR water-resistant sensor with 5-foot leads (for NEMA 4X enclosures) or a 50021579-001 standard sensor (for non-NEMA 4X enclosures)

Specifications:

• Type: Modulating Electronic Temperature Controller
• Voltage: 24, 120, or 240 VAC, 50/60 Hz (24VAC @ 10VA)
• Sensor Inputs: 2
• Relay Outputs: 2 SPDT
• Relay Contact Ratings (24 VAC): 10.0A resistive
• Relay Contact Ratings (120 VAC): 1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
• Relay Contact Ratings (240 VAC): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
• Analog Outputs: 2 (4-20mA, 0-10Vdc, 2-10Vdc, Series 90 selectable)
• Setpoint Temperature Range (°F): -40°F to 248°F
• Accuracy (°F): ±1°F at 77°F
• Differential Temperature (°F): 1°F to 150°F
• Sensor Element: 1097 ohms PTC at 77°F (25°C)
• Maximum Sensor Distance: Up to 1000 ft
• Sensor Dimensions: 1/4" diameter x 2" long
• Dimensions (inches): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
