Documents: ZPA1000V-000

Datasheet More Info

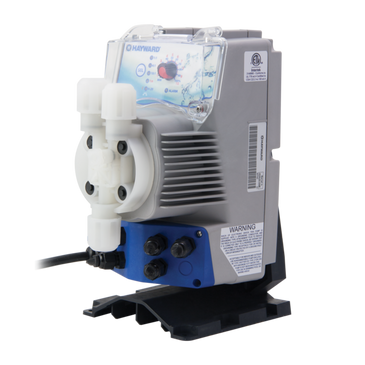

ZPA1000V-000 | Z Series Analog Solend Pump, Diaphrgm, 160s/m, Proportional, FPM Seals | Hayward

Brand: HaywardSKU: ZPA1000V-000

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZPA1000V-000

Jump to: Overview & Specifications Reviews

Overview Details for ZPA1000V-000

Z Series Analog Solend Pump, Diaphrgm, 160s/m, Proportional, FPM Seals

The New Z Series Solenoid Diaphragm Metering Pumps brings simplicity to your metering pump needs in all aspects of design, function and performance. The Z Series features only one design configuration, featuring front facing controls and tube connections, allowing for easy and flexibleinstallation. No more reaching over in tight spaces for hookups and connections. Available in analog and digital versions, the Z Series offers just three sizes with flow rates ranging from 1 gph to 29 gph. Additionally, the Z Series offers a stroke rate of 160 to 300 strokes/minute. No need to have multiple makes or models to cover all your application needs

• Three Pump Sizes Cover <1 To 29 GPH, with Discharge
Pressures up to 232 psi
• Standard One Piece Molded PVDF Pump Head
• PTFE Diaphragm Provides Superior Chemical Handling
• Degassing Valve Included on 100 and 200 Size Models
• Glass Reinforced Polypropylene Housing
• FPM Body O-Ring Seal
• Removable Bracket Allows For Panel Mounting
• Inputs: 4-20mA, Pulse, etc. (varies by model)
• Manual Priming Valve on 500 Size
• NEMA 4X/IP65 Rated
• Electrical Connections Are Configured With
“Quick-Connectors”, Capped When Not In Use
• Automatic Power Supply - 100-240 VAC 50-60 Hz
• CE Mark
• Complete Standard Installation Kit Includes:
– PVDF Foot Filter & Injection Valve
– PVC Suction Tube
– PE Delivery Tube

Specifications

Item Number	ZPA1000V-000
Brand	Hayward
Category	Pumps
Chassis	Analog Interface
Class	Z Series Metering Pumps
Control	Proportional Dosage
Diaphragm Material	PTFE
Dosage Frequency	160 strokes/min
Model	100
Sealing Material	FPM
Series	Z Series Solenoid Diaphragm Metering Pumps
Sub Category	Z Series Solenoid Metering Pumps
Subtype	Metering Pumps
Type	Corrosion Resistant Pumps
