ECP3 | ECP Series Electric Actuator 353 IN*LB 115/230 VAC F07 X 14mm | Hayward
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ECP3
Overview
Details for ECP3

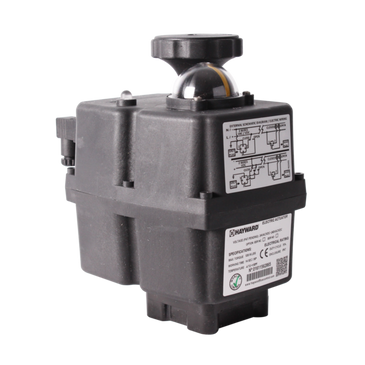

ECP Series Electric Actuator 353 IN*LB 115/230 VAC F07 X 14mm
Description
- Ideal for Corrosive Atmosphere and Environments
- Corrosion-Resistant GFPP Housing
- From 221 in. lbs to 796 in. lbs
- Auto-Switching Power Supply
- LED Status Light & Position Indicator
- Anti-Condensation Heater
- Manual Override
- ISO 5211 Mounting Base
- 100% Factory Tested
- CE Mark
The ECP features a GFPP (Glass Filled Polypropylene) housing that provides the actuator superior corrosion resistance and performance in environments and atmospheres where most metal actuators cannot. Compact actuator for all applications. Standard 24~265VAC/VDC, 2 auxiliary limit switches, heater, LED status, position indicator and manual override. GFPP thermoplastic housing. NEMA 4X (IP67). Proportional control and battery fail safe are factory installed options available at time of order.
• Ideal for Corrosive Atmosphere and Environments• Corrosion-Resistant GFPP Housing
• LED Status Light
• Anti-Condensation Heater
• Manual Override
• Position Indicator
• 4 SPDT Micro Limit Switches
• Lightweight - Easy for Installation
• ISO 5211 Mounting Base
• Stainless Steel Fasteners 303 SS
• 100% Factory Tested
• CE Mark
• Thermal Overload Protection
• Auto Switching Power Supply
Specifications
Item Number | ECP3 |
Brand | Hayward |
Actuator Type | Electric |
Category | N/A |
Chassis | ECP3 |
Class | N/A |
Control | On/Off |
Cycle Speed Sec 60hz Dc | 11 sec |
Cycle Time | 11 s |
Duty Cycle | .75 |
Duty Rating | 75 % |
Enclosure | NEMA 4 / 4X |
Housing | GFPP (Glass Filled Polypropylene) per 314ASTM D4101 Cell Class 85580 |
Iso Flange | F05 |
Motor Watts | 90W |
Operatiing Temperature | 4 to 160 ºF 16 to 71 ºC |
Operation | 1/4 Turn |
Output Shaft | 303 Stainless Steel per ASTM A314 |
Power Type | AC/DC |
Protection | IP67 265 |
Series | ECP Series Glass Filled Polypropylene Electric Actuators |
Sub Category | N/A |
Subtype | Electric Actuators |
Torque Output | 359 in·lb 40 N·m |
Torque Rating | 359 in/lbs |
Type | Hayward Actuation |
Voltage | 24~265VAC/VDC Auto Selecting |
Voltage | Single Phase 24~265VAC/VDC |
