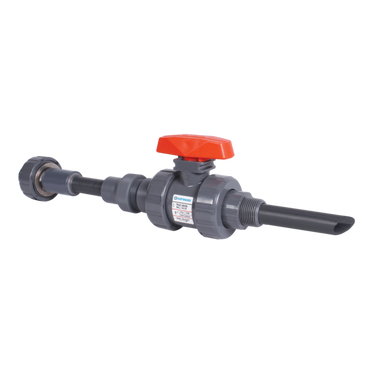

CS11050T06BV1 | CS Series 1/2" Corporation Stop, PVC, TU Socket, FPM, PVC Quill | Hayward

CS Series 1/2" Corporation Stop, PVC, TU Socket, FPM, PVC Quill

Description

All thermoplastic Corporation Stops for Chemical Feed system applications. The CS Series Corporation Stops are designed to ensure chemicals are injected away from the side wall of pipes and tanks, ensuring rapid mixing and preventing corrosion. The integral ball valve allows the injection valves to be removed from pressurized lines or full tanks, while preventing leaks of the chemical or fluid. The builtin check valve prevents the process fluid from backing up into the chemical line. The CS Series is designed for tough municipal and industrial applications.

Key features and benefits

• True Union Thermoplastic Ball Valve with PTFE Seats
• Thermoplastic Injection Quill with Beveled Tip
• 316SS Chain and Hardware
• Variable and Customer Injector Lengths
• Ball Check Valve with FPM O-Rings
• Standard MNPT and Threaded True Union End Connections
• Pressure rated to 150 psi @ 70°F/10 Bar at 21°C

Options

• Flat Tip
• Socket True Union, Metric Socket or BSPT Threaded End Connections
• EPDM O-Ring Seals

Typical applications

• Chemical Dosing
• Transfer and Processing
• Chlorination Systems

Materials

• PVC Cell Class 12454 per ASTM D1784
• CPVC Cell Class 23447 per ASTM D1784
• FPM O-Ring Seals

Ensures that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion inside the process pipe. The integral check valve prevents the process fluid from going back up the chemical line. Quill with 45° Bevel. EPDM seals optional.
