CCS1100100TS | CCS Series 1/2" Sealed Calibration Column, 100mL, 3.2 GPH, PVC, threaded connections | Hayward

CCS Series 1/2" Sealed Calibration Column, 100mL, 3.2 GPH, PVC, threaded connections

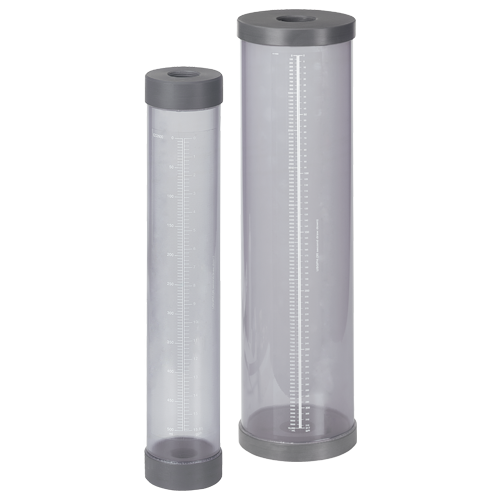

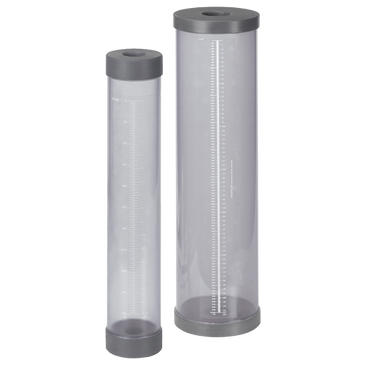

PVC and Glass Calibration Cylinders/Columns for Chemical Feed system applications. Calibration cylinders are installed in the suction line to the chemical metering pump. A timed draw-down of the liquid in the cylinder provides an accurate measurement of the pumps actual output against system pressure.

Key Features and Benefits

• NPT connections
• High Contrast Graduation Markings
• Direct GPH and mL readout
• Clear Easy-View Tube
• Sealed Top with Overflow Connection (Vent)
• Pressure rated to 15 psi @ 70°F/1.03 Bar at 21°C

Options

• Dust Cover or EZ Clean (glass cylinder only)
• BSPT, Socket, Flange, Flange with Ball Valve or True Union End Connections

Typical Applications

• Chemical Dosing
• Transfer and Processing
• Chlorination Systems

Materials

• PVC Cell Class 12454 per ASTM D1784
• Borosilicate Glass
• Thermoplastic Label
