Documents: YC10125SEU

Datasheet More Info

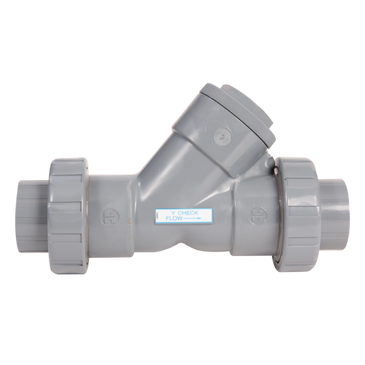

YC10125SEU | 1-1/4" PVC True Union Y-Check Valve w/EPDM o-ring seal, socket end connections | Hayward

Brand: HaywardSKU: YC10125SEU

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to YC10125SEU

Jump to: Overview & Specifications Reviews

Overview Details for YC10125SEU

1-1/4" PVC True Union Y-Check Valve w/EPDM o-ring seal, socket end connections

YC Series y-check valves are offered in PVC and CPVC. O-rings are FPM standard but EPDM is available. All sizes are either socket, threaded or flanged body style. True union socket or threaded end connections are available. For spring-loaded y-check valves, see the SLC Series. All valves are assembled with silicone free lubricant.

• Available in PVC and CPVC
• Full Flow Design
• Minimum Pressure Drop
• PVC or CPVC Coil to Guide Piston to a Positive Seat
• Minimal Back Pressure Required to Seat Piston

Specifications

Item Number	YC10125SEU
Brand	Hayward
Category	Thermoplastic Valves
Class	YC Series True Union Y-Check Valves
Cv Coefficient	26.0000
End Connection Type	True Union Socket
Material	PVC
Pipe Size	1-1/4 in
Pressure Rating	150 PSI
Sealing Material	EPDM
Series	YC Series Y Check Valves
Spring Material	N/A
Sub Category	Check Valves
Subtype	Check Valves
Type	Thermoplastic Valves
