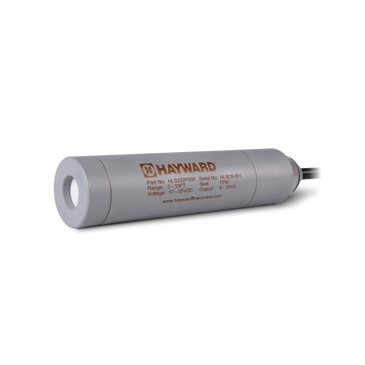

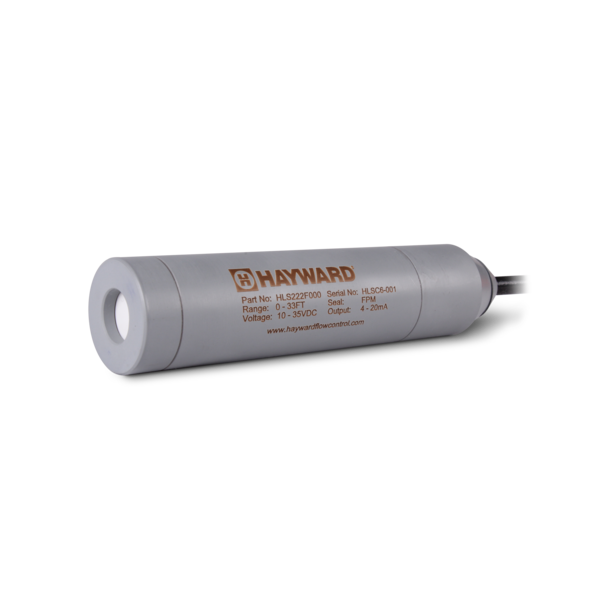

HLS222F000 | HLS Series Adv. Level Sensor, CPVC, 0-33', FPM, 10-35 VDC, 4-20 MA | Hayward

Brand: HaywardSKU: HLS222F000

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HLS222F000

Jump to: Overview & Specifications Reviews

Overview Details for HLS222F000

HLS Series Adv. Level Sensor, CPVC, 0-33', FPM, 10-35 VDC, 4-20 MA

The HLS Indicating Level Sensor offers advanced level and temperature reading indication and transmission. The multicolor, configurable LCD graphical display provides easy viewing of process variables. Built-in relays, open collectors, analog outputs and serial output allow a wide range of communications and control options.

• Indicate liquid level in inches, feet or meters
• Temperature indication and transmission included
• Highly accurate, +/- 0.2%
• Rugged industrial design
• Dual channel: 4-20 mA and PT100/PT1000 RTD inputs
• Configurable LCD graphical display, changes colors to indicate alarm conditions
• ¼ DIN size
• NEMA 4X IP65 protection front panel
• AC and DC power options
• Removable terminal strips
• Powered 4-20mA input loop
• Dual 4-20 mA outputs
• Dual 5A, 250 V programmable relays
• Dual programmable open collector outputs
• RS485 MODBUS option
• Simple, intuitive set-up
• Mounting hardware included
• Combine with HLS Series Level Sensor for complete system
• NEMA 4X/IP65 pre-wired enclosures available

Specifications

Item Number	HLS222F000
Brand	Hayward
Cable Length	50ft
Category	N/A
Class	N/A
Material	CPVC
Max Level Ft H2o	33ft
Sealing Material	FPM
Series	HLST200 Indicating Level Transmitter
Sub Category	N/A
Subtype	Level Sensors and Displays
Type	Instrumentation
