HLS211E000 | HLS Series Adv. Level Sensor, CPVC, 0-15', EPDM, 10-35 VDC, 4-20 MA | Hayward

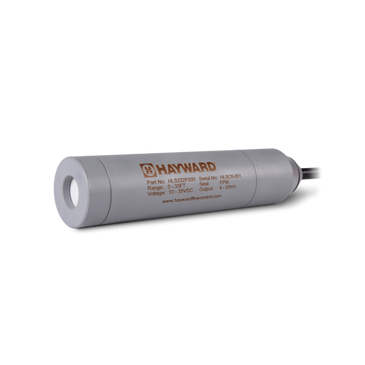

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HLS211E000
Overview
Details for HLS211E000
HLS Series Adv. Level Sensor, CPVC, 0-15', EPDM, 10-35 VDC, 4-20 MA
The HLS Indicating Level Sensor offers advanced level and temperature reading indication and transmission. The multicolor, configurable LCD graphical display provides easy viewing of process variables. Built-in relays, open collectors, analog outputs and serial output allow a wide range of communications and control options.
• Indicate liquid level in inches, feet or meters• Temperature indication and transmission included
• Highly accurate, +/- 0.2%
• Rugged industrial design
• Dual channel: 4-20 mA and PT100/PT1000 RTD inputs
• Configurable LCD graphical display, changes colors to indicate alarm conditions
• ¼ DIN size
• NEMA 4X IP65 protection front panel
• AC and DC power options
• Removable terminal strips
• Powered 4-20mA input loop
• Dual 4-20 mA outputs
• Dual 5A, 250 V programmable relays
• Dual programmable open collector outputs
• RS485 MODBUS option
• Simple, intuitive set-up
• Mounting hardware included
• Combine with HLS Series Level Sensor for complete system
• NEMA 4X/IP65 pre-wired enclosures available
Specifications
Item Number | HLS211E000 |
Brand | Hayward |
Cable Length | 30ft |
Category | N/A |
Class | N/A |
Material | CPVC |
Max Level Ft H2o | 15ft |
Sealing Material | EPDM |
Series | HLST200 Indicating Level Transmitter |
Sub Category | N/A |
Subtype | Level Sensors and Displays |
Type | Instrumentation |
