Documents: SBLTX-10-40

SBLT2 SBLTX SBLTX (Multilingual version)Series SBLT2 & SBLTX Catalog Page SBLT2 More Info

SBLTX-10-40 | Submersible level transmitter | 10 psi pressure range | 4-20 mA output | 40 feet of polyurethane cable | intrinsically safe. | Dwyer

Submersible level transmitter, 10 psi pressure range, 4-20 mA output, 40 feet of polyurethane cable, intrinsically safe.

Brand: DwyerSKU: SBLTX-10-40

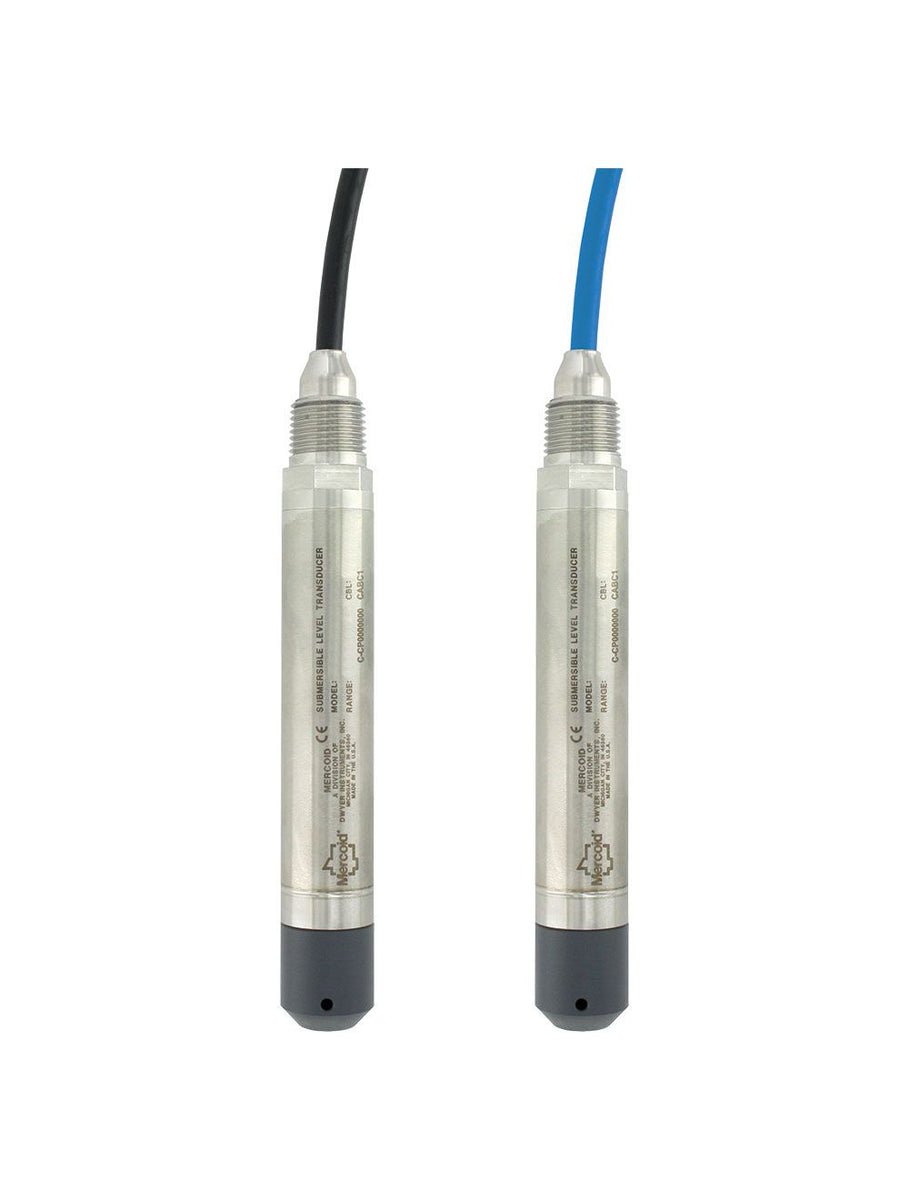

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SBLTX-10-40

Jump to: Overview & Specifications Reviews

Overview Details for SBLTX-10-40

See catalog product page for full listing

Submersible level transmitter | 10 psi pressure range | 4-20 mA output | 40 feet of polyurethane cable | intrinsically safe.

SERIES SBLT2 & SBLTX SUBMERSIBLE LEVEL TRANSMITTER

Perfect for Ground Water and Wells, Lightning Protected or Intrinsically Safe

The Series SBLT2 & SBLTX Submersible Level Transmitters are manufactured for years of trouble free service. These series measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezo resistive sensing element, encased in a 316 SS housing.

If you don't see the exact model you need below, please use our product configurator Series SBLT2 (Not UL Approved) or Series SBLTX (UL Approved).

Product Applications

Well monitoring

Ground water monitoring

Environmental remediation

Surface water monitoring

Down hole

Water Tanks

Meets application requirements with slim design with bullet nose design which protects the diaphragm from damage

Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on SBLT2 models

Eliminates particulate or water droplets from entering the transducer using maintenance-free filter

Peace of mind with UL approved intrinsically safe on SBLTX models for use in hazardous locations when used with proper barrier

Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility

Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation

Minimal downtime with standard 72 hour lead time

Specifications

Series: SBLT2 & SBLTX SUBMERSIBLE LEVEL TRANSMITTER
Category/Type: Level
Type: Level Transmitters
Series: SBLT2 & SBLTX SUBMERSIBLE LEVEL TRANSMITTER
Service: Compatible liquids.
Wetted Materials: Body: 316 SS; 316L SS; Bullet nose: PVC; Cable: Polyether polyurethane or ETFE; Seals: Fluoroelastomer.
Accuracy: ±0.25% FS.
Temperature Limit: SBLT2: Polyurethane: 0 to 150°F (-18 to 66°C); ETFE: 0 to200°F (-18 to 93°C); SBLTX -4 to 176°F (-20 to 80°C); Polyurethane: -4 to 149°F(-20 to 65°C).
Compensated Temperature Range: SBLT2: 0 to 140°F (-18 to 60°C); SBLTX: 0 to 176°F (-18 to 80°C).
Thermal Effect: ±0.02% full scale/°F.
Pressure Limit: 2X FS.
Power Requirement: SBLT2: 10 to 30 VDC (≤1000 ft (305 m) of cable); SBLTX: 10 to 28 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Response Time: 50 ms.
Max. Loop Resistance: 900 Ω at 30 VDC.
Electrical Connections: Wire pigtail.
Mounting Orientation: Suspended in tank below level being measured.
Electrical Protection: SBLT2: Lightning and surge protection; SBLTX: None.
Weight: 2.2 lb (1.0 kg).
Compliance: SBLT2: CE; SBLTX: CE; cULus intrinsically safe for Class I;Div. 1; Groups A; B; C; D; Class II; Div. 1; Groups E; F; G; Class III Div. 1; ATEX: II1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (according to control drawing001833-43)*.
: Up to 275' (83.8 m) for ETFE cable; Up to 470' (143.3 m) for polyurethane cable.
