EATBH107STE | Actuated 3/4" PVC TU Ball Valve w/EPDM seals, socket/threaded ends, 115 VAC EA Actuator included | Hayward

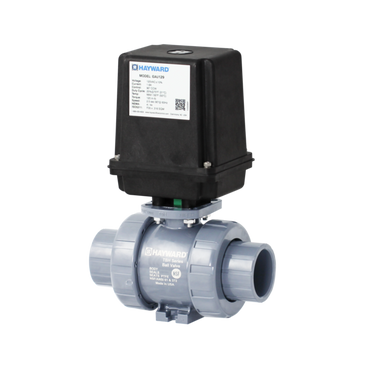

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EATBH107STE

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward EATBH107STE Documents

More Info

Overview

Details for EATBH107STE

Actuated 3/4" PVC TU Ball Valve w/EPDM seals, socket/threaded ends, 115 VAC EA Actuator included

Hayward Flow Control’s industry leading actuation offering and service is now quicker than ever before. By maximizing our LEAN production model and full scale US manufacturing base, Hayward can get your system up and running when it has to. Get any one of the selected automated ball and butterfly valve packages shipped out to you within one business day of ordering.That simple. That easy

VALVE FEATURES
• System2TM Sealing Technology for longer life cycle
• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full
pressure rating
• Consistent operating torque with adjustment-free
design
• ISO mounting flange
• Permanent markings, eliminates labels
• Integral footpad for skid or panel mount
• FPM or EPDM seals
• Double O-Ring stem seals
• Easy replacement for existing Hayward TB Series
• NSF / ANSI 61 and NSF / ANSI 372 listed
ACTUATOR FEATURES
• UL/CSA Listed Motor
• GFPP NEMA 4 / 4X Enclosure
• 2.5 Second, 90° Cycle Time
• Permanently Lubricated Gear Train
• Actuator Brake
• 90 or 180° Operation
• Unidirectional, Not Reversing
• Terminal Block Connections
• Standard 120 VAC
• End of Travel Dry Contact Limit Switch
• Thermal Overload Protection
• Lightweight, Compact and Inexpensive

Specifications

Item Number	EATBH107STE
Brand	Hayward
Actuator Series	EA1 Series Electronic Actuators
Actuator Type	Electric
Category	N/A
Class	N/A
Cv Coefficient	16.0000
Cycle Speed Sec 60hz Dc	2.5 sec
Duty Cycle	25%
End Connection Type	Socket/Threaded
Housing Material	GFPP
Material	PVC Body / PVC Standard Ball
Phase	Single Phase
Pipe Size	3/4 in
Power Type	AC/DC
Pressure Rating	250 PSI
Sealing Material	EPDM
Series	Hayward QuikShip Automated Valves
Sub Category	N/A
Subtype	Actuated Valves
Torque Rating	120 in/lbs
Type	Hayward Actuation
Valve Series	TBH Series True Union Ball Valves
Valve Type	Ball
Voltage	120 VAC
