BYV11120A0NK000 | 12" Butterfly Valve w/PVC Body; PVC Disc; NITRILE liner & seals; actuation ready | Hayward

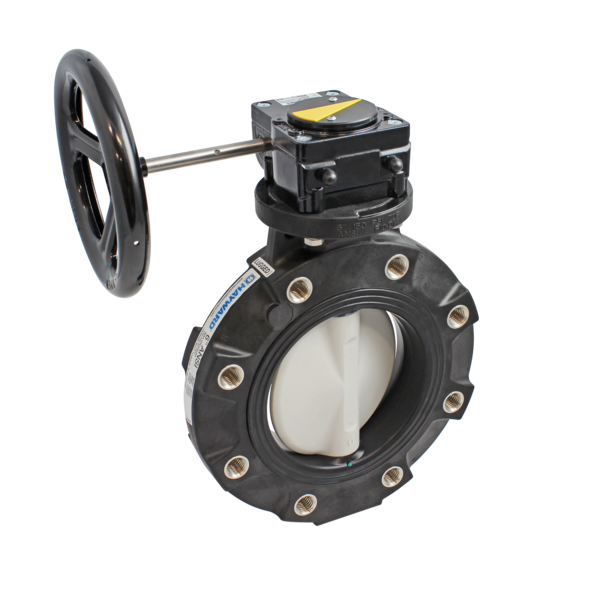

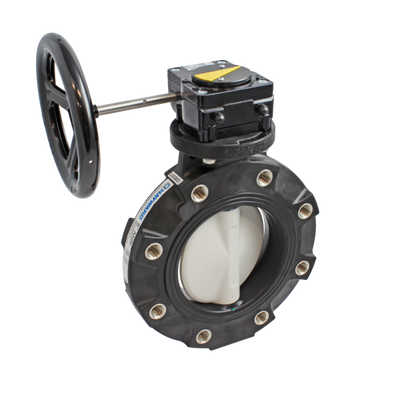

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BYV11120A0NK000

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward BYV11120A0NK000 Documents

Datasheet More Info

Overview

Details for BYV11120A0NK000

12" Butterfly Valve w/PVC Body; PVC Disc; NITRILE liner & seals; actuation ready

The BYV Series butterfly valves are available in PVC, CPVC and GFPP bodies and discs. Liners and seals available in FKM, EPDM or Nitrile materials. 316SS Stems are standard. The BYV Series features a revolutionary hand lever with 19 lockable stop positions and 360 degree interlocking splines. “Patented” & Other Patents Pending” Pat. No.: 9,695,947; 9,989,154; 10,683,937; 10,683,938; 10,690,252; 11,092,242.

• One Piece Injection Molded PVC, CPVC or GFPP Body
• PVC, CPVC or GFPP Disc Materials
• Hand Lever with 19 Lockable Stop Positions & 360° Interlocking Splines
• External Disc Position and Flow Indication
• Hydro-dynamic Centric Disc for Increased Flow Performance
• Over-Sized Liner Face Maximizes Surface Contact with Flanges
• 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
• Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
• ISO 5211 Top Flange and Stem Drive
• All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
• Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70°F Non-Shock
• NSF / ANSI 61 and NSF / ANSI 372 Listed

Specifications

Item Number	BYV11120A0NK000
Brand	Hayward
Body Material Type	PVC Body
Body Material	PVC
Category	Actuation & Controls
Category	Butterfly Valves
Class	BYV Actuated Series Butterfly Valve
Cv Coefficient	6400.0000
Disc Material	PVC
Disc Material	PVC Disc
Flow Coefficient (Cv)	7100
ISO 5211 Flange & Drive	F12-V36
Liner Material	Nitrile
Medium Temperature Range	70 ºF 21 ºC
Method of Operation	Bare Stem
Operation Type	Actuation Ready
Pipe Size	12 in
Pressure Rating at 70°F	150 psi 10 bar
Pressure Rating	150 PSI
Sealing Material	Nitrile
Series	BYV Series Butterfly Valves
Stem Material	316SS
Sub Category	Actuator Ready Valves
SubCategory	BYV Series Butterfly Valves - Actuation Ready
Subtype	Butterfly Valves
Type	Thermoplastic Valves
Valve Size	12 in
