1APSES38 | 5HP 3PH Aquatic Plus Pump 208/230V-460V | Hayward
Overview
Details for 1APSES38

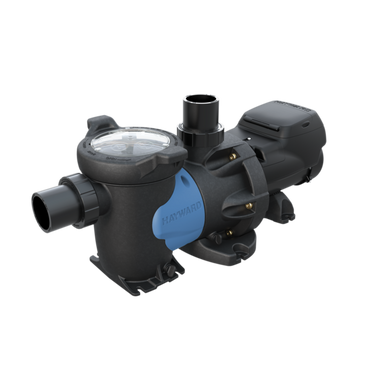

5HP 3PH Aquatic Plus Pump 208/230V-460V
The new LifeStar®MV pumps from Hayward Flow Control are a game changer in global aquatic and animal life support pump performance and versatility. Engineered for heavy-duty durability, the LifeStar®MV sets a new standard of pump performance. With Best In Class hydraulics, the LifeStar®MV pumps are the first 3" pumps to achieve hydraulic efficiency of 350 GPM and heads to 100' (7 HP model), while saving more energy than any comparable pump on the market.The LifeStar®MV features a modular corrosion resistant Glass Filled Polypropylene (GFPP) housing and oversized strainer basket for flexible installation and ease of service. A silicon carbide/silicon carbide shaft seal and all wetted hardware manufactured from 316 Stainless Steel are standard for superior life cycle in aquatic applications. Heavy-duty TEFC motors are standard for all sizes and models. The LifeStar®MV is also available with a variable speed drive integrated into the motor housing.
• VFD Compatible• Modular Strainer Basket Design - Can Be Mounted Remotely
• 3” Flanged Connection - Basket to Pump
• Corrosion Resistant Housing
• Self-Priming
• Suitable for High Volume Pumping
• Perforated HDPE Basket
• Clear High Capacity Basket Strainer Lid for Visual Inspection
• Elevated Base Ensures Ventilation and Protection from Flooding
• Industrial Grade TEFC Motor
• 2.5” x 3” End Connections
Specifications
Item Number | 1APSES38 |
Brand | Hayward |
Body Material | GFPP |
Category | Pumps |
Class | A-Series LifeStar MV Aquatic Pump |
End Connection Material | CPVC |
End Connection Type | True Union Socket |
Horsepower | 5 HP |
Model | MV |
Motor Type | TEFC |
Phase | Three Phase |
Pipe Size | 2-1/2 in x 3 in |
Pump Head Material | GFPP - Glass Filled Polypropylene |
Seal | FPM |
Sealing Material | FPM |
Series | LifeStar Series MV Medium Head Aquatic Pumps |
Sub Category | Pumps |
Subtype | LifeStar Series Aquatic Pumps |
Type | Corrosion Resistant Pumps |
Voltage | 208-230/460 60Hz |
