UZC-12 | UZC-12 Zone/Cntrl Pnl 2Stclg/3Stg Ht | EWC Controls
Documents and manuals
EWC Controls UZC-12 Documents
Overview
Details for UZC-12

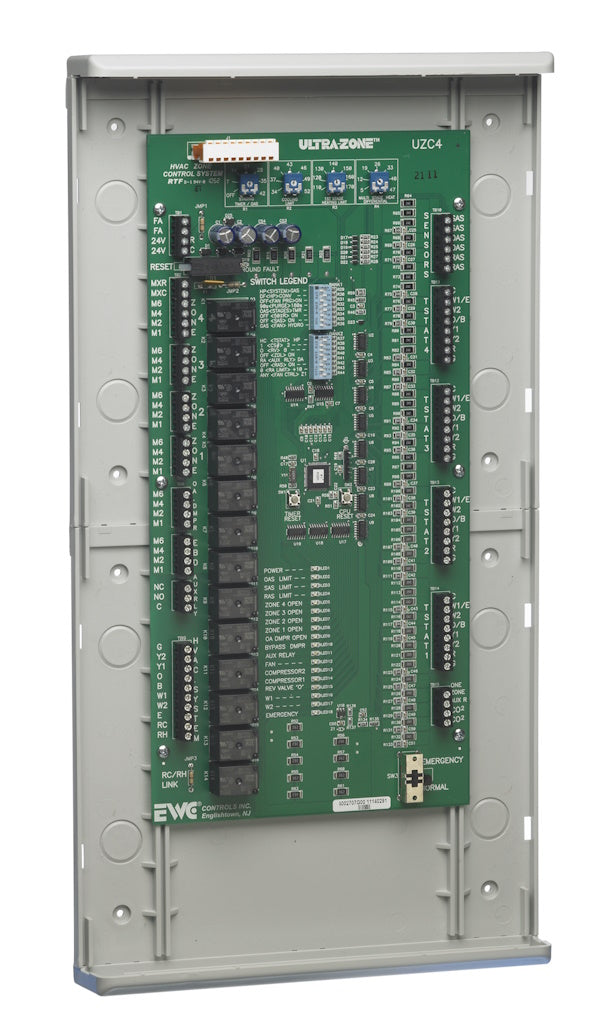

UZC-12 Zone/Cntrl Pnl 2Stclg/3Stg Ht
NUMBER OF ZONES

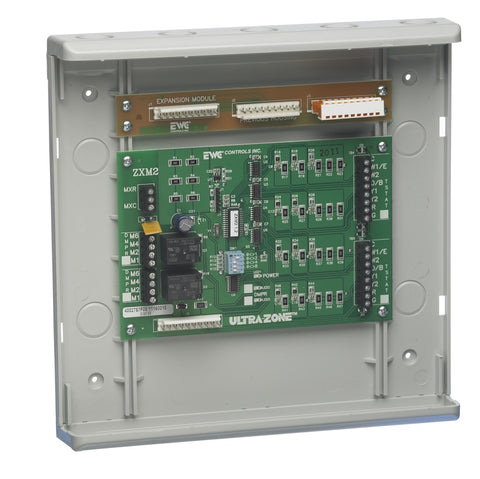

: 2, 3, or 4 Zones, expandable to 22 zones using ZXM-2 expansion modules. See 090377A0144 rev. B.
COMPATIBLE EQUIPMENT: Gas/Electric/Hydro – Up to 2 Stages Heating and 2 Stages Cooling. Heat Pump Conventional or Dual Fuel – Up to 4 Stages Heating and 2 Stages Cooling.
COMPATIBLE THERMOSTATS: Any single or two stage Heat/Cool Thermostat or 4 Stage Heat, 2 Stage Cool Heat Pump Thermostat. COMPATIBLE DAMPERS: EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.
ACCESSORIES: Model SAS – Supply air sensor (Included). Molel OAS – Outdoor Air Sensor (Optional). Model RAS – Return Air Sensor (Optional). Co2 Monitor - Provided by Others (Optional)
ADDITIONAL FEATURES: *Staging via Multi-Stage Thermostats, Adjustable On-board Timer, or Outdoor Air Sensor (7 to 42 Minutes or 7° to 42°F). *50% Rule to limit staging if less than half the total zones are demanding Heating or Cooling. *Variable Speed Fan Reduction Control, if less than 25% of total zones are demanding cooling. *Fire Alarm Interlock feature, shuts down HVAC system and closes all connected dampers. *Enhanced Dehumidify Feature and Supply/Return Air Temperature Monitoring. *Fresh Air Damper Terminal Block with Indoor Blower Interlock. Activated by Co2 dry contact closure
Specifications
Item Number | UZC-12 |
Brand | EWC Controls |
Type | Zoning Panel |
Reviews
