UT-3000 | Ultra Talk Communicating Zone Panel | EWC Controls
Overview
Details for UT-3000

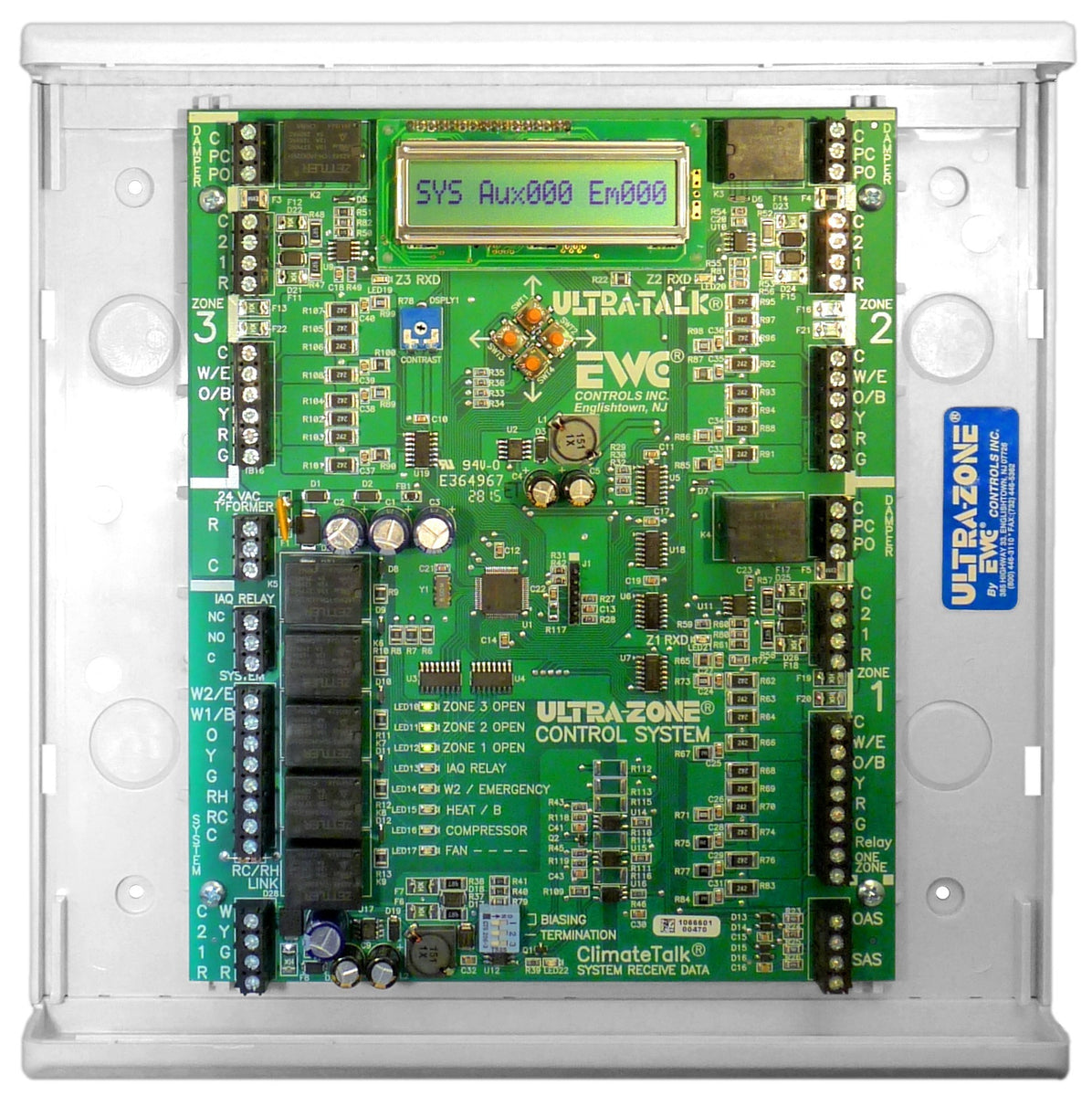

Ultra Talk Communicating Zone Panel
COMPATIBLE THERMOSTATS:
Communicating Thermostats operating on the ClimateTalk® digital protocol such as Daikin One+ and CTK04ae. Any n single stage Heat/Cool Thermostat or 2 Stage Heat,1 Stage Cool Heat Pump Thermostat. WiFi and Wireless thermostats are also compatible.
COMPATIBLE DAMPERS:
EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper. ACCESSORIES: Model SAS – Supply air sensor (Included). Model OAS – Outdoor Air Sensor (Optional). OD temperature is obtained from the communicating outdoor unit.
ADDITIONAL FEATURES:
*Staging/Modulation via PID Control Loop or Time. *Supply Air Temperature Monitoring for function specific Supply Air Temperature Targets. *Supply Air Sensor to help protect HVAC equipment. *LCD screen for Menu Programming, System Status and Temperature Data. *On Board LED’s indicate system operation. *100% Dual Fuel Compatible with Auxiliary Heat lock-out based on outdoor temperature
Specifications
| Item Number | UT-3000 |
| Brand | EWC Controls |
| Type | Zoning Panel |
