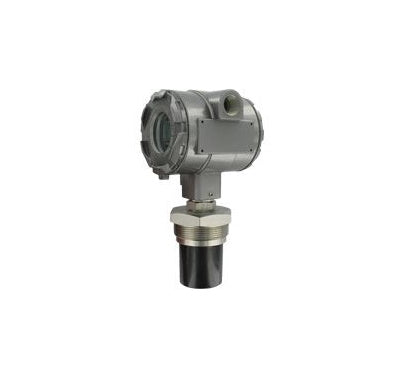

ULT-22 | Ultrasonic level transmitter | 10 m (32.8') range | explosion-proof | 2" BSPT male process connection | M20 conduit connection. | Dwyer

Ultrasonic level transmitter, 10 m (32.8') range, explosion-proof, 2" BSPT male process connection, M20 conduit connection.

Brand: DwyerSKU: ULT-22

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ULT-22

Jump to: Overview & Specifications Reviews

Overview Details for ULT-22

See catalog product page for full listing

Ultrasonic level transmitter | 10 m (32.8') range | explosion-proof | 2" BSPT male process connection | M20 conduit connection.

SERIES ULT ULTRASONIC LEVEL TRANSMITTER

Explosion-Proof, Mapping Software, 3" (76.2 mm) Measuring Column

Series ULT Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. Mapping software makes effective measuring surface only a 3" diameter column. No concerns with ladders, pipes, or other tank intrusions in the remaining sound cone. Unit is FM approved explosion-proof making it ideal for use in hazardous locations. The ULT features easy programming with 6 digit LCD display and simple menu structure. Output range is adjustable with choices of inputting tank dimensions or just fill and empty the tank while calibrating and it automatically scales to levels it senses. Window cover allows early viewing of display. Fail-safe output options and diagnostic capabilities makes the ULT a good choice for critical applications.

Product Applications

Water and wastewater
Pulp and paper processing
Chemical processing
Food and beverage

Provides reliable, accurate, and non-contact level measurement of compatibleliquids
Non-contact technology offers no moving parts to wear, jam, corrode, or get coatedlike contact technologies
Mapping software makes effective measuring surface only a 3" (76.2 mm) diametercolumn with no concerns of ladders, pipes, or other tank intrusions in the remainingsound cone
FM approved explosion-proof making it ideal for use in hazardous locations
Easy programming with 6 digit LCD display and simple menu structure
Output range is adjustable with choices of inputting tank dimensions or by filling andemptying the tank while calibrating and it automatically and scaling to levels it senses
Window cover allows easy viewing of display
Fail-safe output options and diagnostic capabilities

Specifications

Series: ULT ULTRASONIC LEVEL TRANSMITTER
Category/Type: Level
Type: Level Transmitters
Series: ULT ULTRASONIC LEVEL TRANSMITTER
Service: Compatible fluids. Not for use with powder and bulk solids.
Wetted Materials: Sensor: PVDF; Process Connection: 303 SS; O-ring: fluoroelastomer.
Ranges: 24.6' (7.5 m); 32.8' (10 m).
Accuracy: ±0.2% FS.
Resolution: 0.079" (2 mm)
Blind Zone: Under 8" (20 cm).
Beam Width: 3" (7.6 cm) diameter.
Temperature Limits: Ambient: -40 to 140°F (-40 to 60°C); Process: -4 to 140°F (-20 to 60°C).
Temperature Compensation: -40 to 140°F (-40 to 60°C).
Pressure Limits: 30 psi (2 bar) up to 25°C (77°C). Above 25°C (77°F); rating decreases 1.667 psi per 1°C increase. See Catalog page.
Power Requirement: 18 to 28 VDC (2 wire).
Output Signal: 4 to 20 mA or 20 to 4 mA (Two-wire).
Max. Loop Resistance: 250 Ohms at 24 VDC.
Electrical Connections: Screw terminal.
Conduit Connection: 1/2" NPT female (two) or optional M20.
Process Connection: 2" NPT male or optional BSPT.
Enclosure Rating: Weatherproof meets NEMA 4X; explosion-proof rated Class I; Div. 1; Groups B; C; D; Class II/III; Div. 1; Groups E; F; G.
Mounting Orientation: Vertical.
Failsafe: On lost echo after 30 seconds; user selectable to 4; 20; 21; 22 mA or last signal.
Memory: Non-volatile.
Display: 6 character LCD.
Units: In; cm; ft; m; percent.
Weight: 4.0 lb (1.8 kg).
Agency Approvals: CE; FM.
