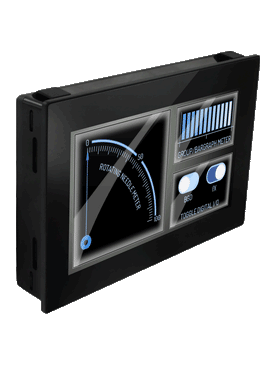

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SPPM2-43-D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SPPM2-43-D Documents

Instruction Manual Series SPPM2 Catalog Page SPPM2 More Info

Overview

Details for SPPM2-43-D

See catalog product page for full listing

Graphical user interface panel meter with development kit.

Series SPPM2 Graphical User Interface Panel Meter

4.3" (109 mm) Touch Screen Display, Fully Customizable

The Series SPPM2 Graphical User Interface Panel Meter is a configurable, full-color 4.3" (109 mm) touch screen display that can be used in a variety of applications. By using the free Windows® based Interface Panel Design Studio software, users can personalize the display with buttons, switches, and analog and digital scales to suit their needs. A development kit is also available, which includes a development board with buttons, dials, LEDs, and screw terminals to test the functionality of all inputs and outputs.

Product Applications

Lift station pump control
Room condition monitoring display
Walk-in refrigeration/freezer control

Large 4.3" touch screen display can be powered from USB or 5 to 30 VDC supply
Free design software allows users to drag and drop elements onto the screen to quickly develop their specific interface
Accepts up to 4 analog inputs, 8 digital I/O, 4 PWM outputs, and 2 open collector alarm outputs

Specifications

Series: SPPM2 Graphical User Interface Panel Meter
Category/Type: Process Control
Type: Panel Meters/Indicators
Series: SPPM2 Graphical User Interface Panel Meter
Inputs: Mini-USB; 6-line screw terminal analog; 4 x ±40 V; or 4 to 20 mA; 8 x digital I/O.
Outputs: 4 x PWM; 2 x alarms (open collector).
Accuracy: ±0.05% ±0.1 mV (typ).
Resolution: 0.04 mV (max ) or 4 decimal places.
Power Supply: USB port or 5 to 30 VDC.
Current Consumption: 400 mA at 5 VDC.
Display: 4.3" (10.9 cm) TFT LCD with 262k colors.
Display Resolution: 480 x 272 pixels.
Sampling Rate: 10 samples/sec.
Temperature Limits: 32 to 104°F (0 to 40°C).
Warm Up: 15 s.
Mounting: Panel mount.
Electrical Connection: Multi-pin DIL’s; 1 mini-USB; and 1 RS232.
Software Requirements: Compatible with Windows® 7; Windows® 8 and Windows® 10.
Weight: 6.7 oz (181 g).
Approvals: CE.
: DEVELOPMENT BOARD SPECIFICATIONS
Inputs: 4 x ±5 VDC.
Outputs: 8 x digital I/O’s; 4 x PWM outputs.
Serial Communication: RS232.
Power Supply: USB port or 5 to 30 VDC.
Weight: 19.7 oz (560 g).
