DPML-401 | LCD Digital panel meter | loop powered 4 to 20 mA | amber segments. | Dwyer

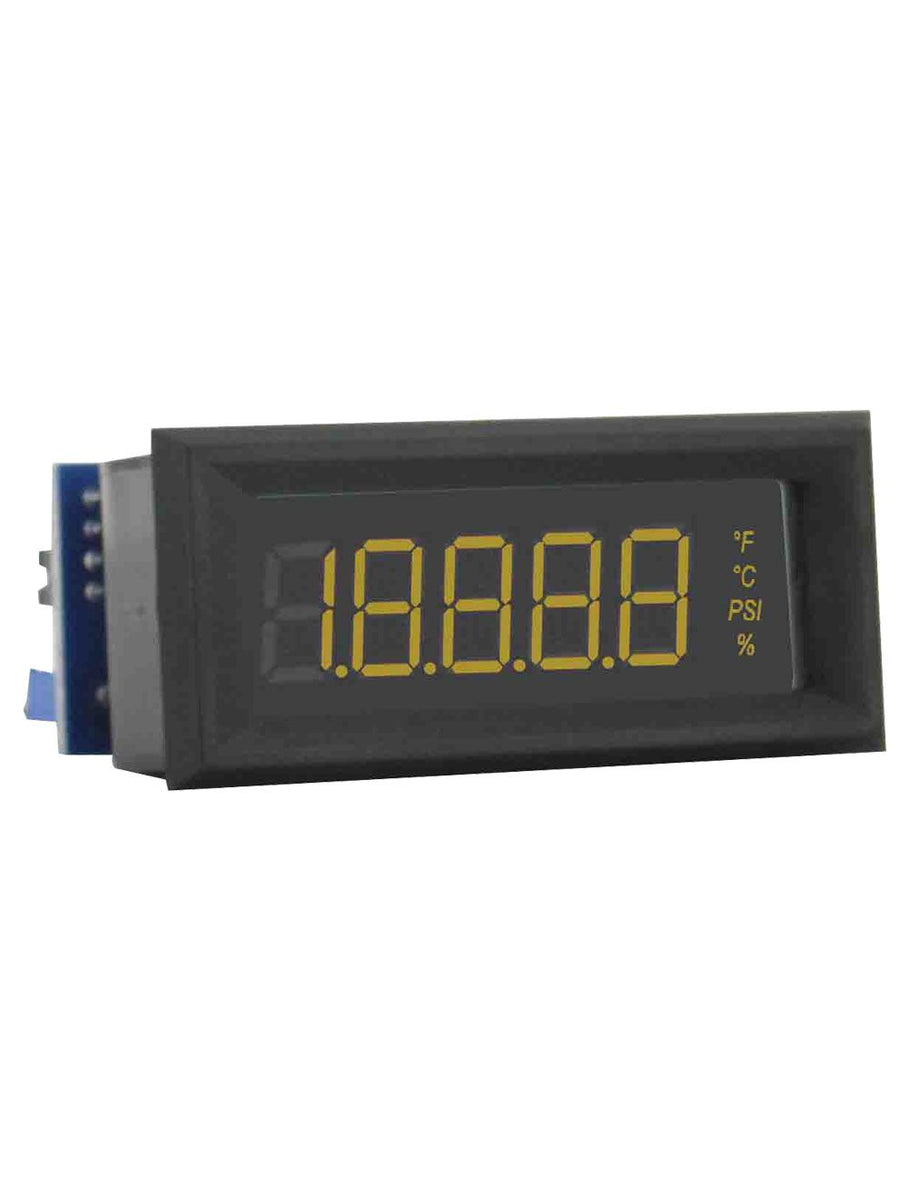

LCD Digital panel meter, loop powered 4 to 20 mA, amber segments.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPML-401
Documents and manuals
Dwyer DPML-401 Documents
Overview
Details for DPML-401
See catalog product page for full listing
LCD Digital panel meter | loop powered 4 to 20 mA | amber segments.
SERIES DPML LCD DIGITAL PANEL METER
4-1/2 Digit LCD, Selectable Engineering Units, Panel Mount
The Series DPML LCD Digital Panel Meter offers a large 4-1/2 digit LCD display with a choice of red, amber or green segments for easy viewing at a distance. The meter accepts loop powered 4 to 20 mA DC input, 0 to 5 VDC, or 0 to 10 VDC voltage input. Standard features include field-selectable engineering units and decimal point positions. A 24 VDC power supply is required for the operation of the back light.
Product Applications
- Used to display process values from pressure, humidity, temperature, voltage,current, watt, or power factor transmitters.
- 3-12 or 4-1/2 digit with 0.45" or 1" segments
- Snap-in bezel mount eliminates mounting hardware for quick installation
- Colored segments available in black, red, amber, green, or blue
- Jumper selectable engineering units and decimal point positions
Specifications
- Series
- DPML LCD DIGITAL PANEL METER
- Category/Type
- Pressure
- Type
- Remote Displays
- Series
- DPML LCD DIGITAL PANEL METER
- Inputs
- DPML-4XX(P): 4 to 20 mA; DPML-5XX(P): 0 to 200 mVDC; 0 to 5 VDC; or 0 to 10 VDC.
- Input Impedance
- DPML-4XX(P): 300Ω nominal; DPML-5XX(P): 390Ω nominal.
- Accuracy
- ±(0.1% FS + 2 count).
- Power Supply
- DPML-4XX(P):Powered by control loop; DPML-5XX(P): 12 VDC or 24 VDC.
- Backlight Power Supply
- 24 VDC @35 mA typical.
- Span and Zero
- Adjustable (±19999 counts).
- Display
- 4-1/2 digits; 7 segments; 0.45" (11.4 mm) H.
- Decimal Points
- 4-position; user selectable.
- Engineering Units
- DPML-XXX: °F;°C; %; psi; DPML-XXXP: V; A; KW; PF.
- Polarity
- Automatic; "-" displayed.
- Operating Temperature
- 32 to 122°F (0 to 50°C).
- Storage Temperature
- -4 to 158°F (-20 to 70°C).
- Mounting
- Snap-in bezel mount.
- Connection
- Screw terminals.
- Conversion Rate
- 3 per second.
- Warm-Up
- 10 minutes typical.
- Weight
- 2 oz (56.7 g).
- Agency Approvals
- RoHS.
