DPMP-401 | LCD digital process meter | loop powered 4 to 20 mA | amber segments. | Dwyer
LCD digital process meter, loop powered 4 to 20 mA, amber segments.

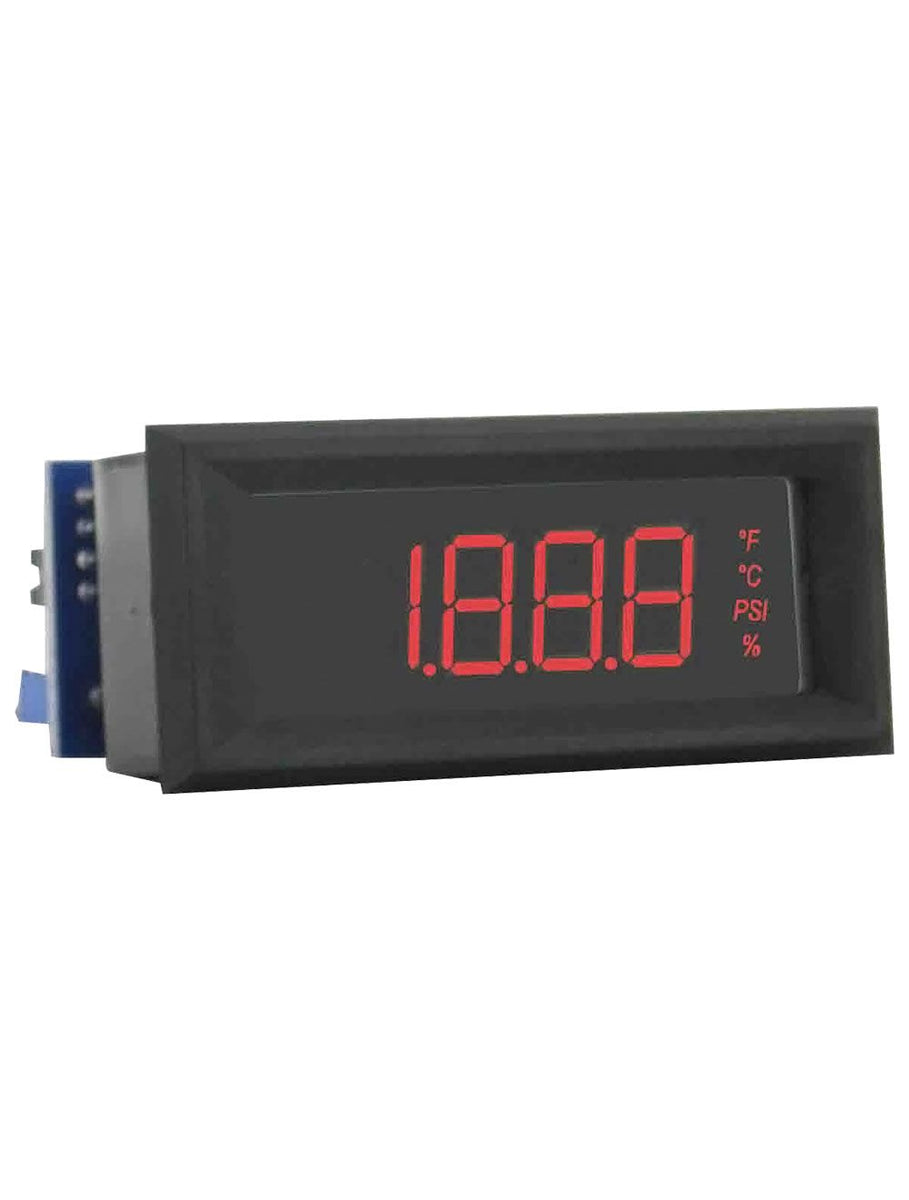

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMP-401
Documents and manuals
Dwyer DPMP-401 Documents
Overview
Details for DPMP-401
See catalog product page for full listing
LCD digital process meter | loop powered 4 to 20 mA | amber segments.
SERIES DPMP LCD DIGITAL PANEL METER
3-1/2 Digit, User Selectable Engineering Units, Panel Mount
The Series DPMP LCD Digital Panel Meter provides easy viewing on the 3-1/2 digit LCD display. The display segments are available in a choice of amber, red or green. The meter features user-selectable engineering units, adjustable zero and span and field-selectable decimal point position. The snap-in bezel mount eliminates mounting hardware for quick installation. A 24 VDC power supply is required for the operation of the backlight.
Product Applications
- Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters
- 3-1/2 or 4-1/2 digit with 0.45" or 1" segments
- Snap-in bezel mount eliminates mounting hardware for quick installation
- Colored segments available in black, red, amber, green, or blue
- Jumper selectable engineering units and decimal point positions
Specifications
- Series
- DPMP LCD DIGITAL PANEL METER
- Category/Type
- Pressure
- Type
- Remote Displays
- Series
- DPMP LCD DIGITAL PANEL METER
- Inputs
- DPMP-4XX(P): 4 to 20 mA;DPMP-5XX(P): 0 to 200 mVDC; 0 to 5VDC; or 0 to 10 VDC.
- Input Impedance
- DPMP-4XX(P):300Ω nominal; DPMP-5XX(P): 390Ωnominal.
- Accuracy
- ±(0.1% FS + 2 count).
- Power Supply
- DPMP-4XX(P): Powered by control loop; DPMP- 5XX(P): 12 VDC or 24 VDC.
- Backlight Power Supply
- 24 VDC @35 mA typical.
- Span and Zero
- Adjustable (±1999 Counts).
- Display
- 3-1/2 digits; 7 segments; 0.45" (11.4 mm) H.
- Decimal Points
- 3-position; user selectable.
- Engineering Units
- DPMP-XXX: °F; °C; %; psi; DPMP-XXXP: V; A; KW; PF.
- Polarity
- Automatic; "-" displayed.
- Operating Temperature
- 32 to 122°F (0 to 50°C).
- Storage Temperature
- -4 to 158°F (-20 to 70°C).
- Mounting
- Snap-in bezel mount.
- Connection
- Screw terminals.
- Conversion Rate
- 3 per second.
- Warm-Up
- 10 minutes typical.
- Weight
- 2 oz (56.7 g).
- Agency Approvals
- RoHS.
