LCI132-01 | Process Indicator | ±100 VDC; ±20 VDC; ±10 VDC; ±200 VDC; ±20 mA DC input | 24/48 VAC supply voltage. | Dwyer
Process Indicator, ±100 VDC; ±20 VDC; ±10 VDC; ±200 VDC; ±20 mA DC input, 24/48 VAC supply voltage.

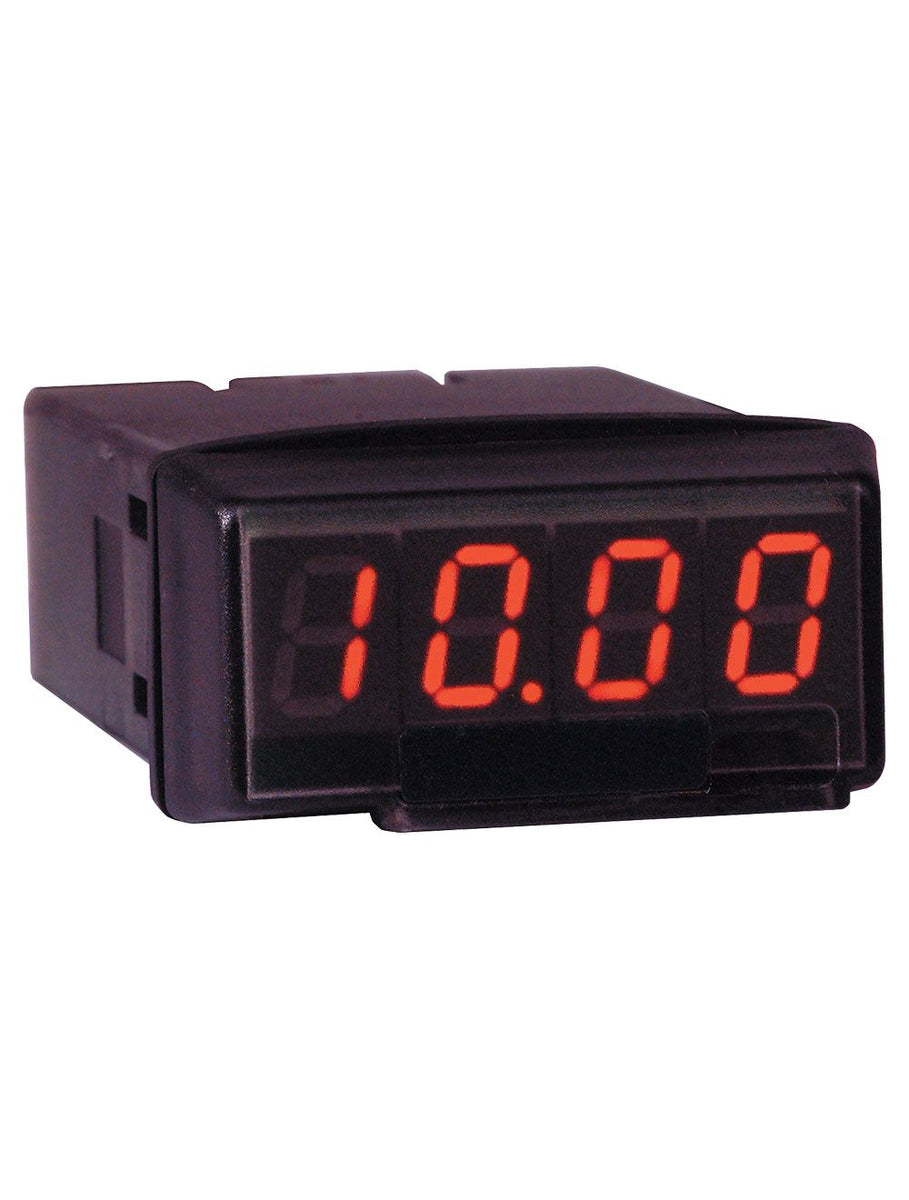

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LCI132-01
Documents and manuals
Dwyer LCI132-01 Documents
Overview
Details for LCI132-01
See catalog product page for full listing
Process Indicator | ±100 VDC; ±20 VDC; ±10 VDC; ±200 VDC; ±20 mA DC input | 24/48 VAC supply voltage.
Series LCI132 Process Indicator
1/32 DIN, Fully Programmable
The Series LCI132 Process Indicator offer flexibility and value in a low cost, compact 1/32 DIN package. The shallow depth of these full size panel meters allows installation in panels only 2.76" (70 mm) deep with room to spare.
Product Applications
- Display process values from various transmitters
- Fits in 1/32 DIN panel cutouts
- IP65 (NEMA 4X) front housing
- Fully programmable
- Various voltage and current inputs fits most processes
Specifications
- Series
- LCI132 Process Indicator
- Category/Type
- Pressure
- Type
- Remote Displays
- Series
- LCI132 Process Indicator
- LCI132-0X
- Range
- Input Volts (DC): ±200 V; ±20 V; ±10 V;Input Amperes: ±100 mV; ±20 mA;
- Resolution
- Input Volts (DC): 0.1 V; 0.01 V; 1 mV;Input Amperes: 0.1 mV; 0.01 mA;Input Impedance: Volts: 1 M Ω; mV: 100 M Ω; mA: 12.1 Ω.
- LCI132-1X
- Range AC
- Input Volts: 600.0; 100.0;Input Amperes: 5.000; 1.000;
- Range DC
- Input Volts: -199.9; ±600.0; ±100.0;Input Amperes: -1.999; +5.000; ±1.000;
- Resolution
- Input Volts: 0.1 V;Input Amperes: 1 mAInput Impedance: Volts: 3 M Ω (106); Amps: 12 m Ω (10-3).
- Accuracy at 23ºC ±5ºC
- 100/600 VDC 1/5 A DC; 600V/5A AC: ±(0.2% reading + 3 digits). 100 V / 1A AC:±(0.4% reading + 4 digits).
- Temperature Coefficient
- 100 ppm/°C.
- Warm Up
- 5 minutes.
- Power Supply and Fuses (DIN 41661) (Not supplied)
- LCI132-X0
- 85–265 VAC 50/60 Hz and 100-300 VDC: Fuse: 0.1A/ 250V.
- LCI132-X1
- 21-53 VAC 50/60Hz and 10.5-70 VDC: Fuse 0.5A/ 250V.
- Display
- LCI132-X0
- 85–265 VAC 50/60 Hz and 100-300 VDC: Fuse: 0.1A/ 250V.
- LCI132-X1
- 21-53 VAC 50/60Hz and 10.5-70 VDC: Fuse 0.5A/ 250V.
- Environmental
- Operating Temperature
- -10 to 60°C.
- Storage Temperature
- -25 to 85°C.
- Relative Humidity (non condensed)
- < 95% @ 40°C.
- Panel Sealing
- NEMA 4X (IP66).
