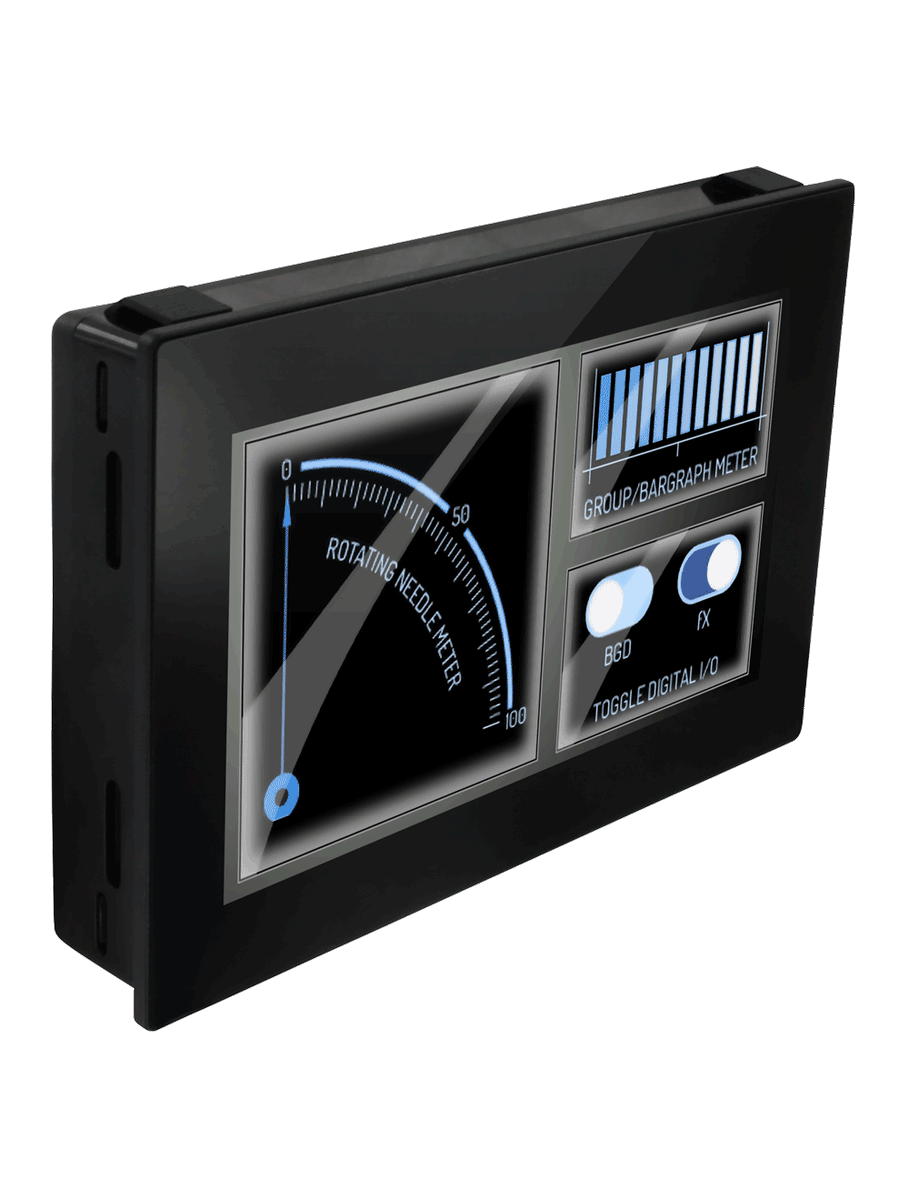

Graphical user interface panel meter.
Series SPPM2 Graphical User Interface Panel Meter
4.3" (109 mm) Touch Screen Display, Fully Customizable
The Series SPPM2 Graphical User Interface Panel Meter is a configurable, full-color 4.3" (109 mm) touch screen display that can be used in a variety of applications. By using the free Windows® based Interface Panel Design Studio software, users can personalize the display with buttons, switches, and analog and digital scales to suit their needs. A development kit is also available, which includes a development board with buttons, dials, LEDs, and screw terminals to test the functionality of all inputs and outputs.
Product Applications
- Lift station pump control
- Room condition monitoring display
- Walk-in refrigeration/freezer control
- Large 4.3" touch screen display can be powered from USB or 5 to 30 VDC supply
- Free design software allows users to drag and drop elements onto the screen to quickly develop their specific interface
- Accepts up to 4 analog inputs, 8 digital I/O, 4 PWM outputs, and 2 open collector alarm outputs
Specifications
- Series
- SPPM2 Graphical User Interface Panel Meter
- Category/Type
- Process Control
- Type
- Panel Meters/Indicators
- Series
- SPPM2 Graphical User Interface Panel Meter
- Inputs
- Mini-USB; 6-line screw terminal analog; 4 x ±40 V; or 4 to 20 mA; 8 x digital I/O.
- Outputs
- 4 x PWM; 2 x alarms (open collector).
- Accuracy
- ±0.05% ±0.1 mV (typ).
- Resolution
- 0.04 mV (max ) or 4 decimal places.
- Power Supply
- USB port or 5 to 30 VDC.
- Current Consumption
- 400 mA at 5 VDC.
- Display
- 4.3" (10.9 cm) TFT LCD with 262k colors.
- Display Resolution
- 480 x 272 pixels.
- Sampling Rate
- 10 samples/sec.
- Temperature Limits
- 32 to 104°F (0 to 40°C).
- Warm Up
- 15 s.
- Mounting
- Panel mount.
- Electrical Connection
- Multi-pin DIL’s; 1 mini-USB; and 1 RS232.
- Software Requirements
- Compatible with Windows® 7; Windows® 8 and Windows® 10.
- Weight
- 6.7 oz (181 g).
- Approvals
- CE.
- DEVELOPMENT BOARD SPECIFICATIONS
- Inputs
- 4 x ±5 VDC.
- Outputs
- 8 x digital I/O’s; 4 x PWM outputs.
- Serial Communication
- RS232.
- Power Supply
- USB port or 5 to 30 VDC.
- Weight
- 19.7 oz (560 g).
