RDCV50T | 2" diaphragm valve | remote coil | NPT connection | two diaphragms | Cv factor of 106. | Dwyer

2" diaphragm valve, remote coil, NPT connection, two diaphragms, Cv factor of 106.

Brand: DwyerSKU: RDCV50T

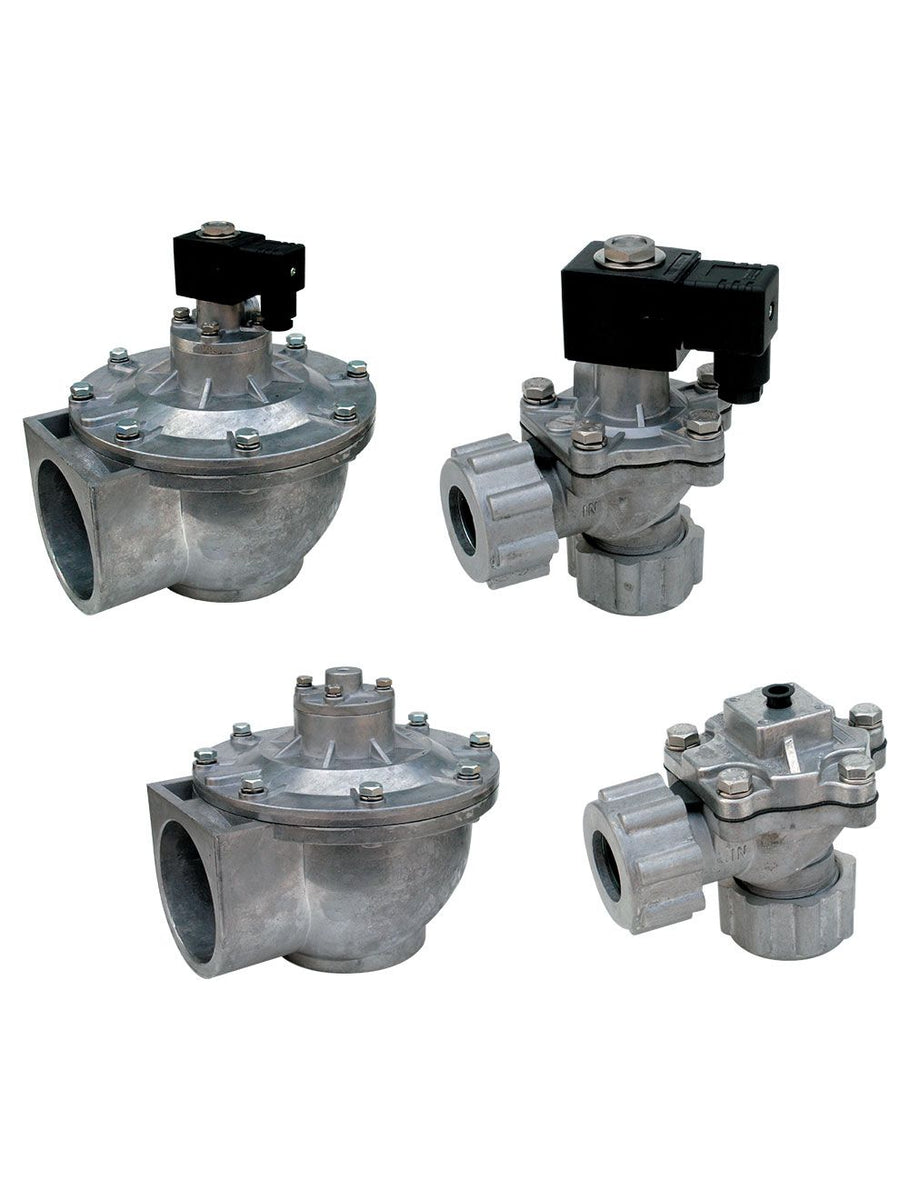

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RDCV50T

Jump to: Overview & Specifications Reviews

Overview Details for RDCV50T

See catalog product page for full listing

2" diaphragm valve | remote coil | NPT connection | two diaphragms | Cv factor of 106.

Series DCV/RDCV Diaphragm Valve

NPT connections, Easy Installation

The Series DCV/RDCV Diaphragm Valves are ideal for use with the Series DCT1000and Series DCT500 duct collection timer boards for controlling the air pulse in jet pulsetype dust collectors to clean the filters. Both the Series DCV and RDCV have theoption for either coupling or NPT connections. The coupling connection allows for aquick and simple installation. Only the stub pipe and blowtube need to be cleaned anddeburred before the valve is fit into position. The “T” Series DCV has female threadedconnections. Both the “C” and “T” versions have a 90° angle between the inlet andoutlet the most suitable configuration for pulse valve applications. The design offers notonly ease of installation, but also minimal airflow restriction for an exceptional cleaningpulse. The valves are offered in both integrated and remote coil configurations.

Product Applications

Dust collection systems
Bag houses
For use with DCT1000 and DCT500

Thermoplastic polyurethane diaphragm for longer life
High flow factor for effective cleaning
Valve can be mounted in any position
Quick on & off response time

Specifications

Series: DCV/RDCV Diaphragm Valve
Category/Type: Valves
Type: Valves
Valve Type: Diaphragm Pulse
Series: DCV/RDCV Diaphragm Valve
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: aluminum; Trim: 304 SS; Diaphragm and Seals: NBR; Diaphragm Disc: polyamide.
Other Materials: Cover: aluminum; Body Bolts and Spring: 304 SS.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 140°F (-20 to 60°C) for RDCV models; -4 to 122°F (-20 to 50°C) for DCV models; Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC for DCV models.
Power Consumption: 12 W; inrush: 17 VA; holding: 14.5 VA for DCV models.
Electrical Connection: DIN connection for DCV models.
Enclosure Rating: NEMA 4X (IP65) for DCV models.
Process Connection: See Catalog page.
Mounting Orientation: Any position.
Agency Approval: CE.
