PUF-1002 | Portable ultrasonic flowmeter Type A | 0.5 to 4.5" (13 to 115 mm) pipe size | transducers with data logger. | Dwyer

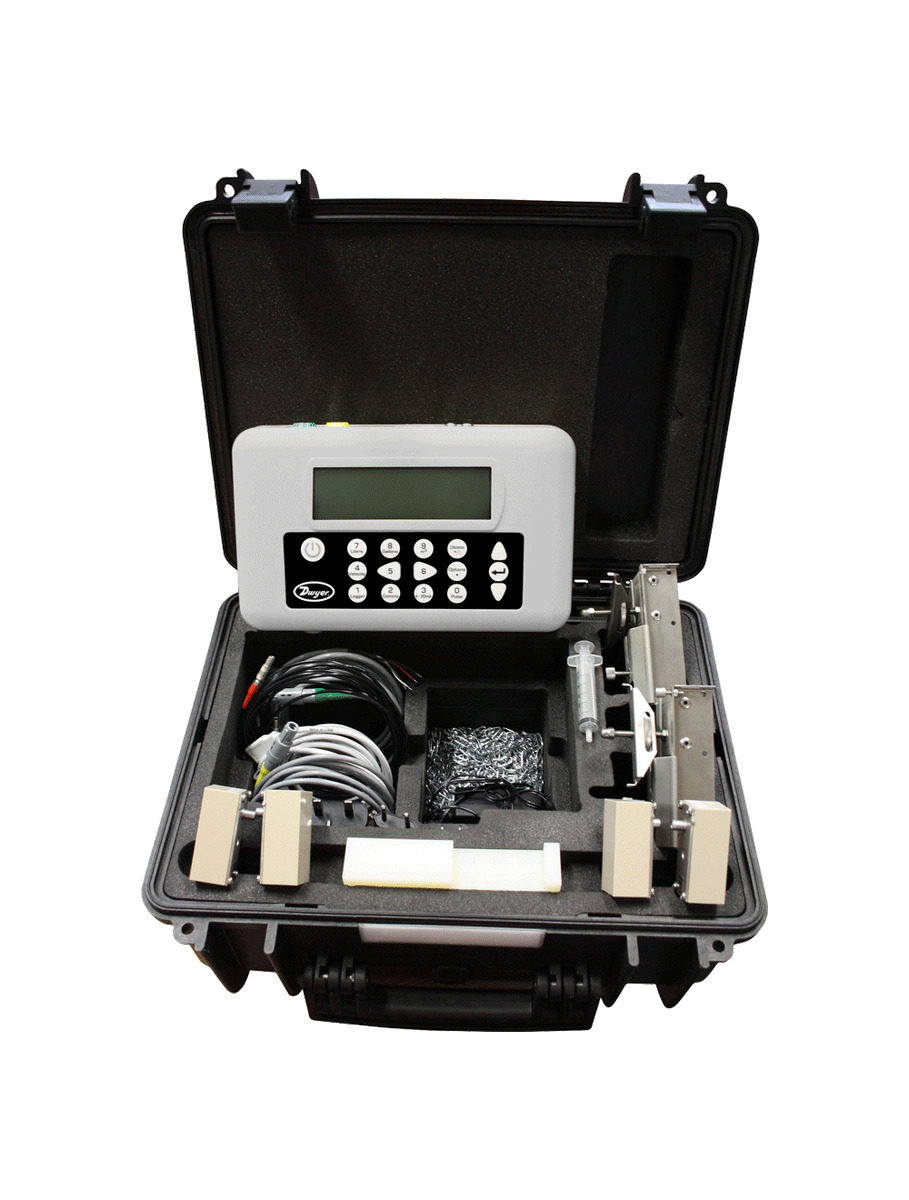

Portable ultrasonic flowmeter Type A, 0.5 to 4.5" (13 to 115 mm) pipe size, transducers with data logger.

Brand: DwyerSKU: PUF-1002

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PUF-1002

Jump to: Overview & Specifications Reviews

Overview Details for PUF-1002

See catalog product page for full listing

Portable ultrasonic flowmeter Type A | 0.5 to 4.5" (13 to 115 mm) pipe size | transducers with data logger.

Series PUF Portable Ultrasonic Flowmeter Kit

Portable, Non-Invasive and Data Logging Capability

The Series PUF Portable Ultrasonic Flowmeter Kit utilizes the transit-timedifference for measuring flow rates in pipes non-invasively. It is a compact and lightweightinstrument incorporating the latest electronics and signal processing technologies, realizinghigh performance and easy operation. This device is capable of 20 hours continuousoperation with its built-in battery. The PUF comes with an IP67 rated carrying case withmolded foam inserts to hold and protect all equipment against dust and water. The screenoffers easy to read text with a convenient backlight for visual comfort. The efficient layoutof the function keys add to this unit's easy to use programming. The unit comes with RS232and USB connections to allow for easy connection to any personal computer or printer.

PRINCIPLES OF OPERATION
Two sensors are placed on the exterior of the pipe, and each transmits an ultrasonicpulse through the pipe and fluid to the other. The velocity of the liquid flowing throughthe pipes causes the pulse to accelerate or decelerate. The difference in the transittimes of the two pulses is used to calculate the flow rate. The use of transit timeallows the flowmeter to be unaffected by pressure or temperature changes.

Calibration Option available under Accessories.

For non-data logging version see Series PUB.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Treated Water
River Water
Sea Water
Potable Water
Demineralized Water
Glycol/water mix
Hydraulic System
Diesel Oil

Kit Includes:
Converter
Set of Transducers (Both Sets for Model PUF-1001)
Transducer Holders
Set Transducer Cables (6.56 ft (2 m))
USB, RS232, 4 to 20 mA Communication Cables
12 VDC Power Supply
Ultrasonic Coupling Grease
Set of Chains
Ruled Guide Rail
Test Block
Carrying Case

Specifications

Series: PUF Portable Ultrasonic Flowmeter Kit
Category/Type: Flow
Type: Flow Transmitters
Series: PUF Portable Ultrasonic Flowmeter Kit
Service: Homogeneous liquids that do not contain air bubbles capable of ultrasonicwave propagation.
Inputs: Lemo connector cable from sensors.
Range: 0.33 to 65.62 ft/s (0.1 to 20 m/s).
Display: 240 x 64 pixel graphic display; high contrast black on white with backlight;Languages: English; French; German; Swedish; Italian; Spanish; Portuguese;Russian; Norwegian; and Dutch; 5.2" W x 1.5" H (132.1 x 38.1 mm).
Accuracy: ± 0.5 to 2% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and Pipe ID > 3 in(75 mm).± 3% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and Pipe ID in range 0.5to 3 in (13 to 75 mm).± 6% of flow reading for flow rate < 0.66 ft/s (0.2 m/s).
Power Requirements: 9 to 24 VDC; (1) 5-Cell NiMH battery; internal; factory replaceable(continuous operation time: 20 hours with back light and output off); (recharging time: 6.5 hours; power adapter used).
Power Consumption: 10.5 W.
Power Adapter: 110/240 VAC adapter; UK;US; European adapters included.
Temperature Limits: -4 to 275°F (-20 to 135°C).
Outputs: Analog: 1 opto-isolated output: 4 to 20 mA; 0 to 16 mA or 0 to 20 mA (selectable); Error current: 0 to 26 mA (selectable); Load resistance: 620 O max; Pulse: 1 opto-isolated MOSFET relay; 150 mA max; 500 pps max; 200 Hz max.
Serial Communications: USB; RS-232.
Enclosure Rating: Transducers: IP51; Carrying Case: IP67; Converter: IP54.
Materials: Flame retardant injection molded ABS plastic.
Repeatability: ±0.5 % of measured value or ±0.066 ft/s (0.02 m/s).
Electrical Connections: Multi-pin Lemo plugs.
Turbidity: <3% by volume of particulate content.
Permissible Air Content: <3% by volume.
Response Time: <500 ms.
Weight: Unit without accessories: 2.30 lb (1.06 kg); Unit with accessories in carrying case: 14.40 lb (6.52 kg).
Agency Approvals: CE.
: ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Carbon steel; SS; copper; UPVC/PVDF; concrete;galvanized steel; mild steel; glass; brass.
Applicable Pipe Lining: Rubber; glass; concrete; epoxy; steel; other*.
Pipe Wall Thickness: 0.04 to 3" (1 to 75 mm).
Pipe Lining Thickness: < 1" (< 25 mm).
: *Selectable option for special material with known propagation rate of the liningmaterial.
