PLS2-E-1-1 | Explosion-proof paddle level switch | 115 VAC power supply | Dwyer

Explosion-proof paddle level switch, 115 VAC power supply

Brand: DwyerSKU: PLS2-E-1-1

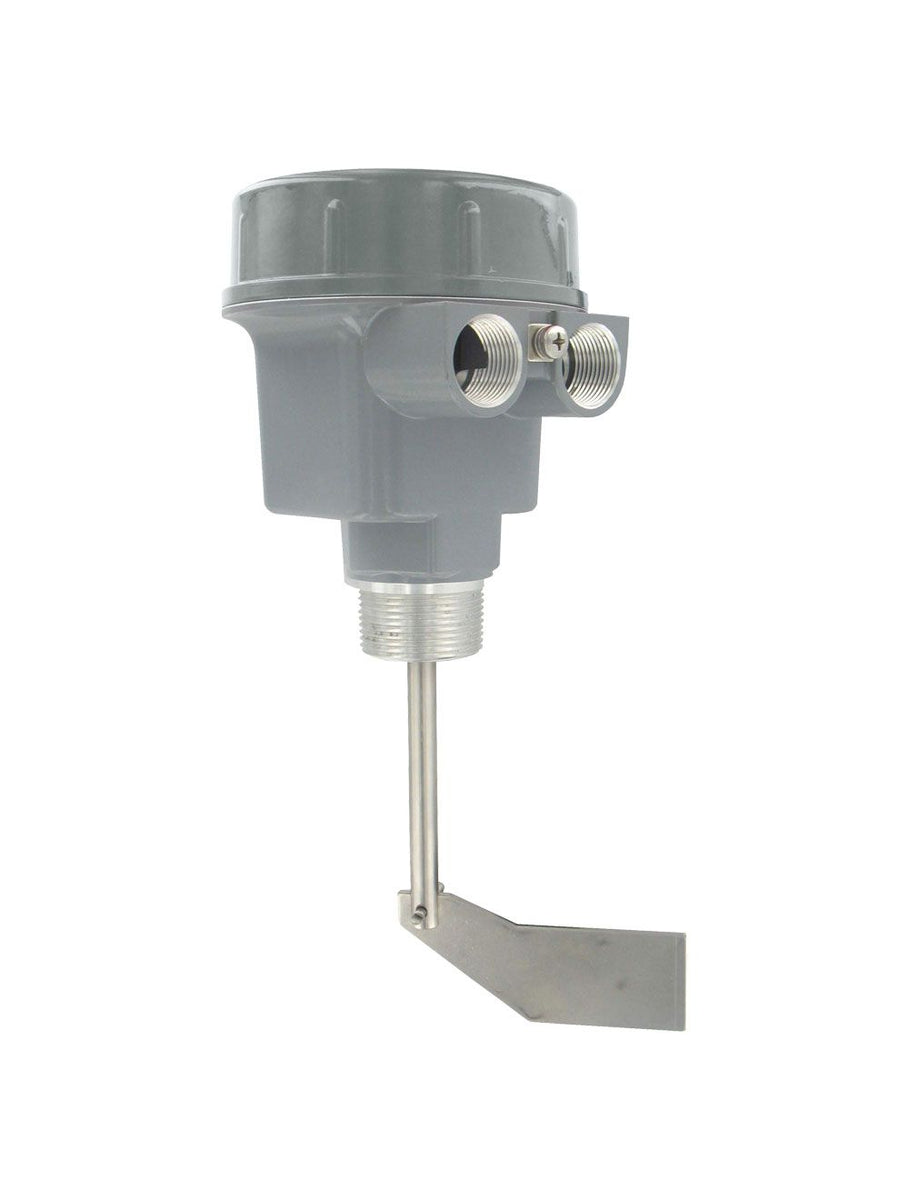

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PLS2-E-1-1

Jump to: Overview & Specifications Reviews

Overview Details for PLS2-E-1-1

See catalog product page for full listing

Explosion-proof paddle level switch | 115 VAC power supply

Series PLS2 Paddle Level Switch

3 Sensitivity Settings, Top or Side Mounting

The Series PLS2 Paddle Level Switch is an electromechanical level switch designedfor level monitoring of bulk materials. The rotating measuring vane is driven by abrushless synchronous motor at one revolution per minute and as product builds up,the paddle rotation is impeded and the resulting motor torque activates the outputswitch and stops the motor. The PLS2 is designed with the industry standard 1-1/4"male NPT connection and unit can be side or top mounted.

Product Applications

Mining
Food and beverage
Silos
Hoppers

Specifications

Series: PLS2 Paddle Level Switch
Category/Type: Level
Type: Level Switches
Series: PLS2 Paddle Level Switch
Service: Dry powder or bulk materials compatible with wetted materials.
Wetted Materials: Paddle: 304 SS;Exposed shaft: 303 SS;Shaft seal: NBR;Process connection: Aluminum.
Temperature Limits: Process: -13 to 176°F (-25 to 80°C);Ambient: -4 to 140°F (-20 to 60°C).
Pressure Limits: 11.6 psi (0.8 bar).
Power Requirements: Select by model number: 115 VAC; 230 VAC or 24 VDC.
Power Consumption: AC versions: 4 VA; DC version: 2.5 watt.
Enclosure: Aluminum; powder coated.
Enclosure Rating: NEMA 4 (IP66);Rated for Class II & III; Div. 1; Group E; F; G.
Switch Type: SPDT micro switch.
Electrical Rating: 5 A @ 250 VAC; 3 A @ 30 VDC.
Electric Connections: Screw terminals.
Conduit Connection: 3/4" female NPT.
Process Connection: 1-1/4" male NPT.
Mounting Orientation: Side or top mounting.
Sensitivity: Minimum material density of 6 lb/ft3 (96 kg/m3).
Permitted Mechanical Loading: Standard shaft: 67 lbf (300 N) max;Optional extension: 22 lbf (100 N) max.
Weight: 2.6 lb (1.2 kg).
Agency Approvals: CE; FM.
