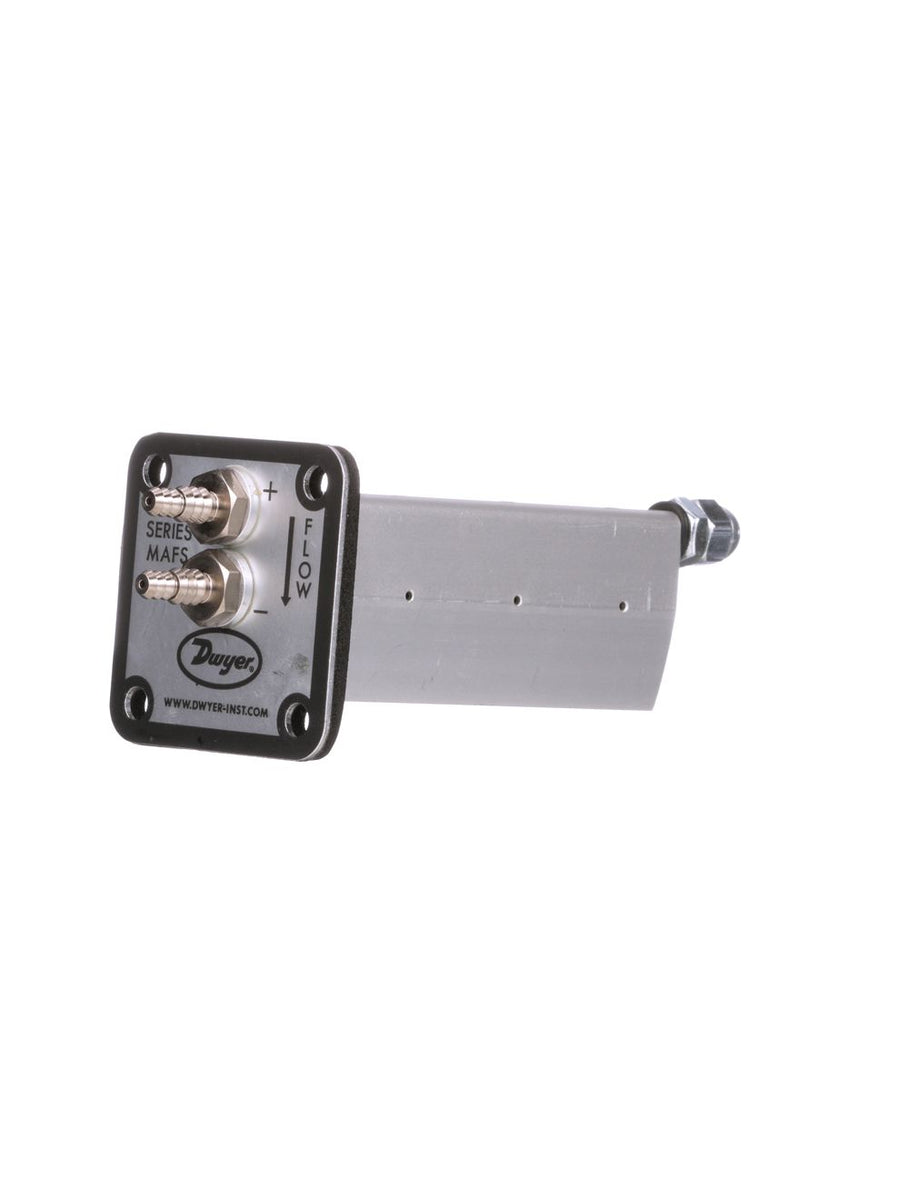

MAFS-300MM | Averaging air flow sensor | 300mm probe | Dwyer
Averaging air flow sensor, 300mm probe
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MAFS-300MM
Documents and manuals
Dwyer MAFS-300MM Documents
Overview
Details for MAFS-300MM
See catalog product page for full listing
Averaging air flow sensor | 300mm probe
SERIES MAFS METAL AVERAGING FLOW SENSOR
Blade Profile Provides Enhanced Performance and Minimal Flow Disruption
The Series MAFS Metal Averaging Flow Sensor is ideal for use with Dwyer® precision air velocity gages, transmitters and switches. The SeriesMAFS uses evenly distributed total and static pressure measuring points to deliver anaccurate measurement of velocity pressure in a duct.
Product Applications
- VAV air flow measurement
- Fume hood exhaust flow verification
- HVAC retrofit air flow measurement
- Blade design limits disruption of air stream
- Lightweight aluminum construction
- Flange mount for rectangular or square ducts
Specifications
- Series
- MAFS METAL AVERAGING FLOW SENSOR
- Category/Type
- Air Quality
- Type
- Flow Sensors
- Series
- MAFS METAL AVERAGING FLOW SENSOR
- Service
- Clean air.
- Wetted Materials
- Aluminum AA6063.
- Accuracy
- 400 to 9000 FPM (45.7 m/s): ±2% FS; ±3% FS for 6" and 48" length models.
- K-Factor
- 0.81; 0.80 for 6" (160 mm) and 48" (1200 mm) lengths; 4" (100 mm) length=0.82.
- Max. Temperature
- 400°F (204°C); Gasket: -31 to 230°F (-35 to 110°C).
- Minimum Design Flow
- 400 fpm (2 m/s).
- Maximum Design Flow
- 12;000 fpm (60.91 m/s).
- Process Connections
- Dual barb for 3/16" or 1/4" ID tubing.
- Straight Run Requirements
- 5 diameters or longest side dimensions.
- Agency Approvals
- Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
