HM3531DLJ600 | Differential pressure manometer | range 0-29 psi | 0.1% of reading accuracy. | Dwyer
Differential pressure manometer, range 0-29 psi, 0.1% of reading accuracy.

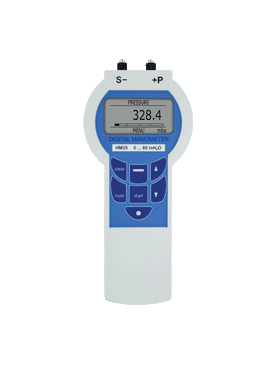

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HM3531DLJ600
Documents and manuals
Dwyer HM3531DLJ600 Documents
Overview
Details for HM3531DLJ600
See catalog product page for full listing
Differential pressure manometer | range 0-29 psi | 0.1% of reading accuracy.
SERIES HM35 PRECISION DIGITAL PRESSURE MANOMETER
Up to 0.05% Accuracy, Graphical Display, Data Logging Capability
The Series HM35 Precision Digital Pressure Manometer is designed to reliablymeasure and log absolute pressure, differential pressure, or gage pressure withup to 0.05% accuracy. The data logging function can store up to 10,742 readingsand transmit the readings to a PC through an IR serial port. The large display cangraphically display trends in the data as well as peaks and valleys. Calibration certification included.
Product Applications
- Calibration facilities
- Laboratories
- Able to record up to 10,742 readings, which can be downloaded to a PC
- Up to 0.05% accuracy for use in critical applications
- Measure absolute, differential, or gage pressure
Specifications
- Series
- HM35 PRECISION DIGITAL PRESSURE MANOMETER
- Category/Type
- Pressure
- Type
- Manometers
- Series
- HM35 PRECISION DIGITAL PRESSURE MANOMETER
- Service
- Air and compatible gases.
- Wetted Materials
- 18/8 stainless steel.
- Accuracy
- (Includes linearity; hysteresis; and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit.
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Storage Temperature
- -4 to 140°F (-20 to 60°C).
- Humidity
- Maximum 95% RH non-condensing.
- Display
- Graphical back lit LCD. 128 x 64 points.
- Power Requirements
- (3) 1.5 V AA alkaline batteries; installed functional; userreplaceable. Can operate on 6 to 9 VDC external power.
- Current Consumption
- 25 mA without back lit display; IR; or buzzer.
- Memory
- 10;742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
- Case Protection
- IP54 (NEMA 3).
- Weight
- 10.5 oz (300 g).
- Process Connections
- Hose 4/6 mm or 1/8" NPT.
- Agency Approvals
- CE.
