Documents: HM3531DLF100

Instruction Manual Series HM35 Catalog Page More Info

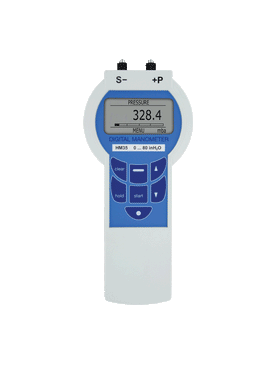

HM3531DLF100 | Differential pressure manometer | range 0-120" w.c. | 0.05% accuracy. | Dwyer

Differential pressure manometer, range 0-120" w.c., 0.05% accuracy.

Brand: DwyerSKU: HM3531DLF100

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HM3531DLF100

Jump to: Overview & Specifications Reviews

Overview Details for HM3531DLF100

See catalog product page for full listing

Differential pressure manometer | range 0-120" w.c. | 0.05% accuracy.

SERIES HM35 PRECISION DIGITAL PRESSURE MANOMETER

Up to 0.05% Accuracy, Graphical Display, Data Logging Capability

The Series HM35 Precision Digital Pressure Manometer is designed to reliablymeasure and log absolute pressure, differential pressure, or gage pressure withup to 0.05% accuracy. The data logging function can store up to 10,742 readingsand transmit the readings to a PC through an IR serial port. The large display cangraphically display trends in the data as well as peaks and valleys. Calibration certification included.

Product Applications

Calibration facilities
Laboratories

Able to record up to 10,742 readings, which can be downloaded to a PC
Up to 0.05% accuracy for use in critical applications
Measure absolute, differential, or gage pressure

Specifications

Series: HM35 PRECISION DIGITAL PRESSURE MANOMETER
Category/Type: Pressure
Type: Manometers
Series: HM35 PRECISION DIGITAL PRESSURE MANOMETER
Service: Air and compatible gases.
Wetted Materials: 18/8 stainless steel.
Accuracy: (Includes linearity; hysteresis; and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit.
Temperature Limits: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 140°F (-20 to 60°C).
Humidity: Maximum 95% RH non-condensing.
Display: Graphical back lit LCD. 128 x 64 points.
Power Requirements: (3) 1.5 V AA alkaline batteries; installed functional; userreplaceable. Can operate on 6 to 9 VDC external power.
Current Consumption: 25 mA without back lit display; IR; or buzzer.
Memory: 10;742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
Case Protection: IP54 (NEMA 3).
Weight: 10.5 oz (300 g).
Process Connections: Hose 4/6 mm or 1/8" NPT.
Agency Approvals: CE.
