DPMW-403P | LCD Digital panel meter with power engineering units | loop powered 4 to 20 mA | red segments | no backlight. | Dwyer

LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments, no backlight.

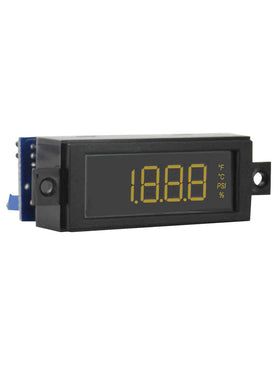

Dwyer | DPMW-403P

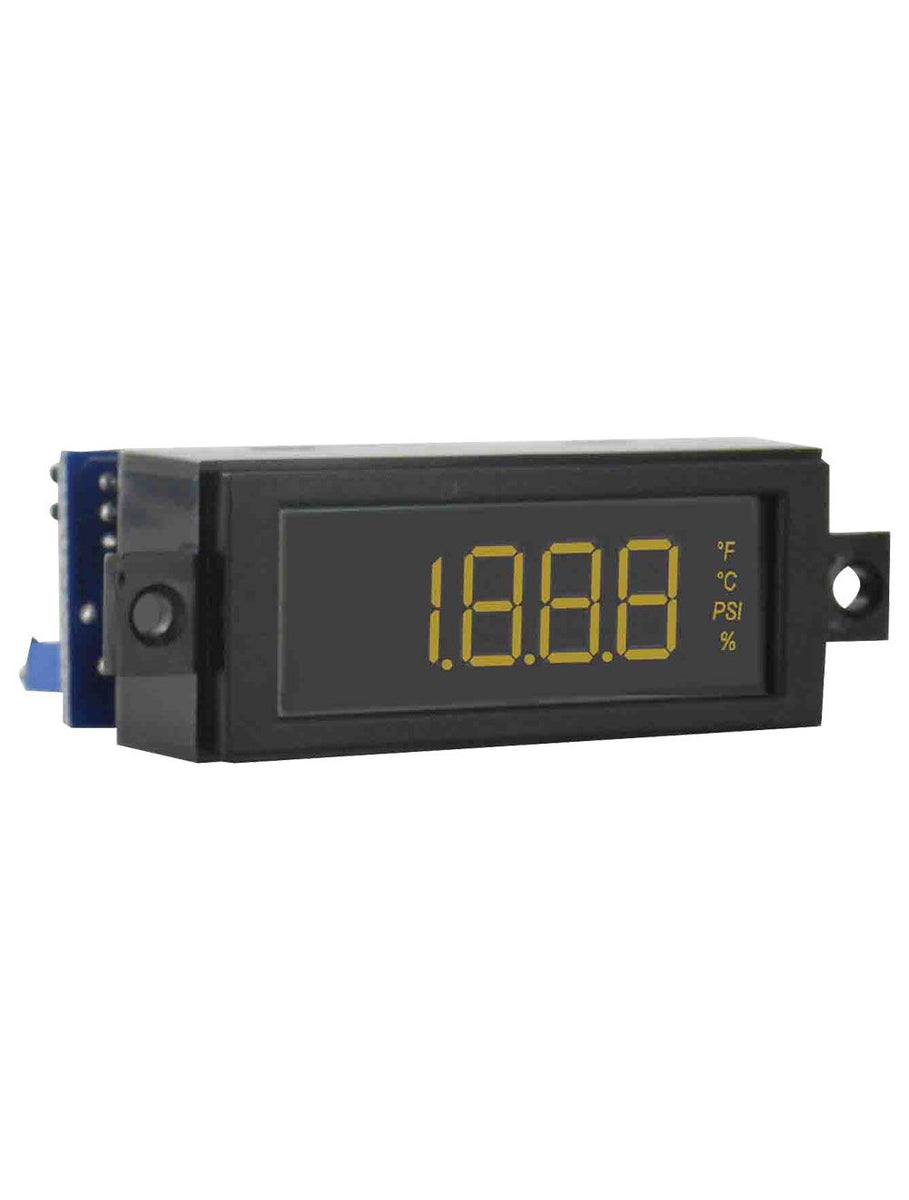

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMW-403P
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Dwyer DPMW-403P Documents

Instruction ManualSeries DPMW Catalog Page More Info

Overview

Details for DPMW-403P

See catalog product page for full listing

LCD Digital panel meter with power engineering units | loop powered 4 to 20 mA | red segments | no backlight.

SERIES DPMW LCD DIGITAL PANEL METER

3-1/2 Digits, Window Mount

The Series DPMW LCD Digital Panel Meter is designed with a 3-1/2 digit, high contrast LCD. It can be quickly installed in a 2.31" (58.4 mm) x 0.91" (22.9 mm) panel cutout. This unit accepts a 4 to 20 mA input signal from a pressure, level, flow, or temperature transmitter and requires a 24 VDC power supply to illuminate the colored segments.

Product Applications

  • Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters
  • Window mounts
  • 3-1/2 digit display with 0.45" (11 mm) segments
  • Colored segments available in black, red, amber, green, or blue
  • Jumper selectable engineering units and decimal point positions

Specifications

Series
DPMW LCD DIGITAL PANEL METER
Category/Type
Pressure
Type
Remote Displays
Series
DPMW LCD DIGITAL PANEL METER
Inputs
4-20 mA DC.
Input Impedance
300Ω nominal.
Accuracy
±(0.1% FS + 2 count).
Power Supply
Powered by control loop.
Backlight Power Supply
24 VDC @ 35 mA typical.
Span and Zero
Adjustable. (±1999).
Display
3-1/2 digits; 7 segments; 0.45" (11.4 mm) H.
Decimal Points
3-position; user selectable.
Engineering Units
DPMW-XXX: °F; °C; %; psi; DPMW-XXXP: V; A; KW; PF.
Polarity
Automatic; "-" displayed.
Operating Temperature
32 to 122°F (0 to 50°C).
Storage Temperature
-4 to 158°F (-20 to 70°C).
Mounting
Window mount.
Connection
Screw terminals.
Conversion Rate
3 per second.
Warm-Up
10 minutes typical.
Weight
2 oz (56.7 g).
Agency Approvals
RoHS.
