DPMP-501P | LCD Digital panel meter with power engineering units | voltage powered 12 VDC/24 VDC | amber segments. | Dwyer

LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, amber segments.

Brand: DwyerSKU: DPMP-501P

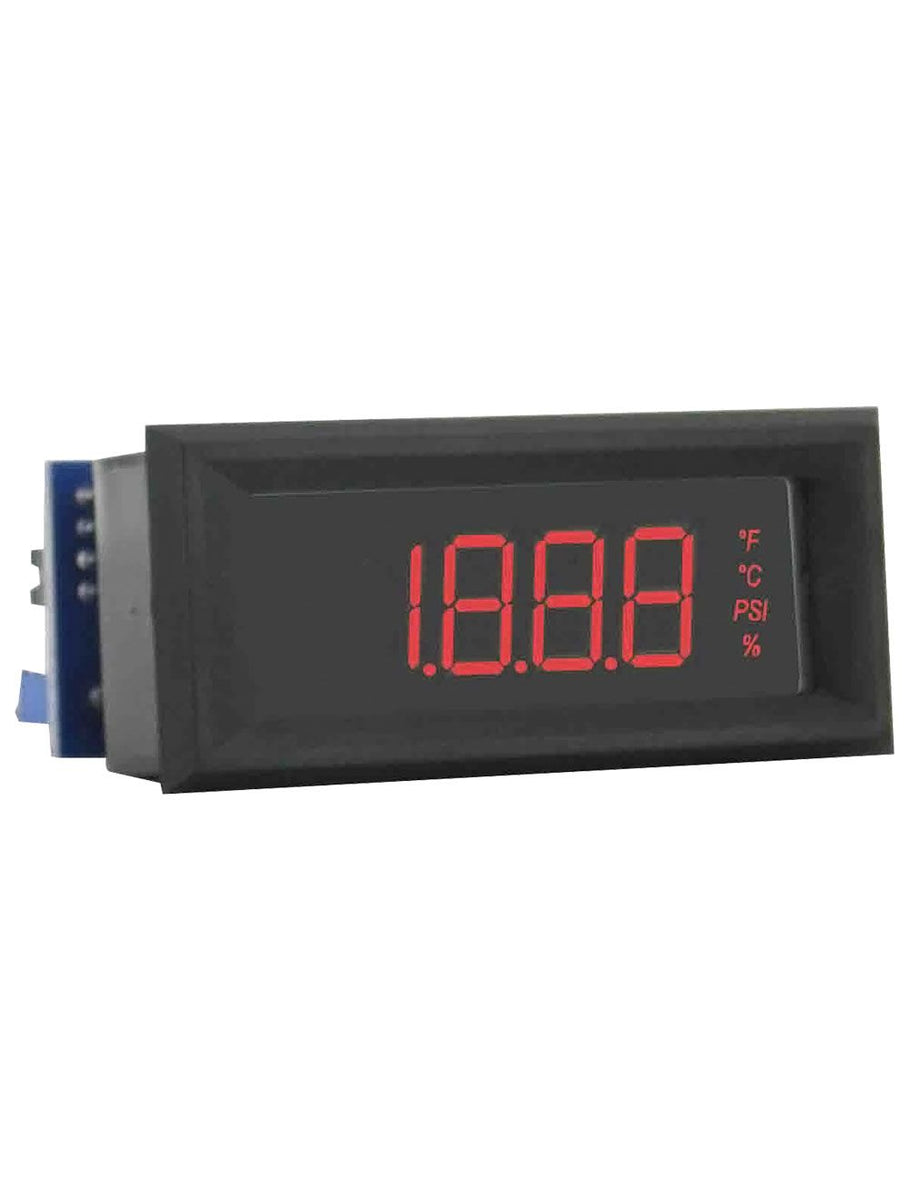

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPMP-501P

Jump to: Overview & Specifications Reviews

Overview Details for DPMP-501P

See catalog product page for full listing

LCD Digital panel meter with power engineering units | voltage powered 12 VDC/24 VDC | amber segments.

SERIES DPMP LCD DIGITAL PANEL METER

3-1/2 Digit, User Selectable Engineering Units, Panel Mount

The Series DPMP LCD Digital Panel Meter provides easy viewing on the 3-1/2 digit LCD display. The display segments are available in a choice of amber, red or green. The meter features user-selectable engineering units, adjustable zero and span and field-selectable decimal point position. The snap-in bezel mount eliminates mounting hardware for quick installation. A 24 VDC power supply is required for the operation of the backlight.

Product Applications

Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters

3-1/2 or 4-1/2 digit with 0.45" or 1" segments
Snap-in bezel mount eliminates mounting hardware for quick installation
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions

Specifications

Series: DPMP LCD DIGITAL PANEL METER
Category/Type: Pressure
Type: Remote Displays
Series: DPMP LCD DIGITAL PANEL METER
Inputs: DPMP-4XX(P): 4 to 20 mA;DPMP-5XX(P): 0 to 200 mVDC; 0 to 5VDC; or 0 to 10 VDC.
Input Impedance: DPMP-4XX(P):300Ω nominal; DPMP-5XX(P): 390Ωnominal.
Accuracy: ±(0.1% FS + 2 count).
Power Supply: DPMP-4XX(P): Powered by control loop; DPMP- 5XX(P): 12 VDC or 24 VDC.
Backlight Power Supply: 24 VDC @35 mA typical.
Span and Zero: Adjustable (±1999 Counts).
Display: 3-1/2 digits; 7 segments; 0.45" (11.4 mm) H.
Decimal Points: 3-position; user selectable.
Engineering Units: DPMP-XXX: °F; °C; %; psi; DPMP-XXXP: V; A; KW; PF.
Polarity: Automatic; "-" displayed.
Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 158°F (-20 to 70°C).
Mounting: Snap-in bezel mount.
Connection: Screw terminals.
Conversion Rate: 3 per second.
Warm-Up: 10 minutes typical.
Weight: 2 oz (56.7 g).
Agency Approvals: RoHS.
