DPML-503P | LCD Digital panel meter with power engineering units | voltage powered 12 VDC/24 VDC | red segments. | Dwyer

LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, red segments.

Brand: DwyerSKU: DPML-503P

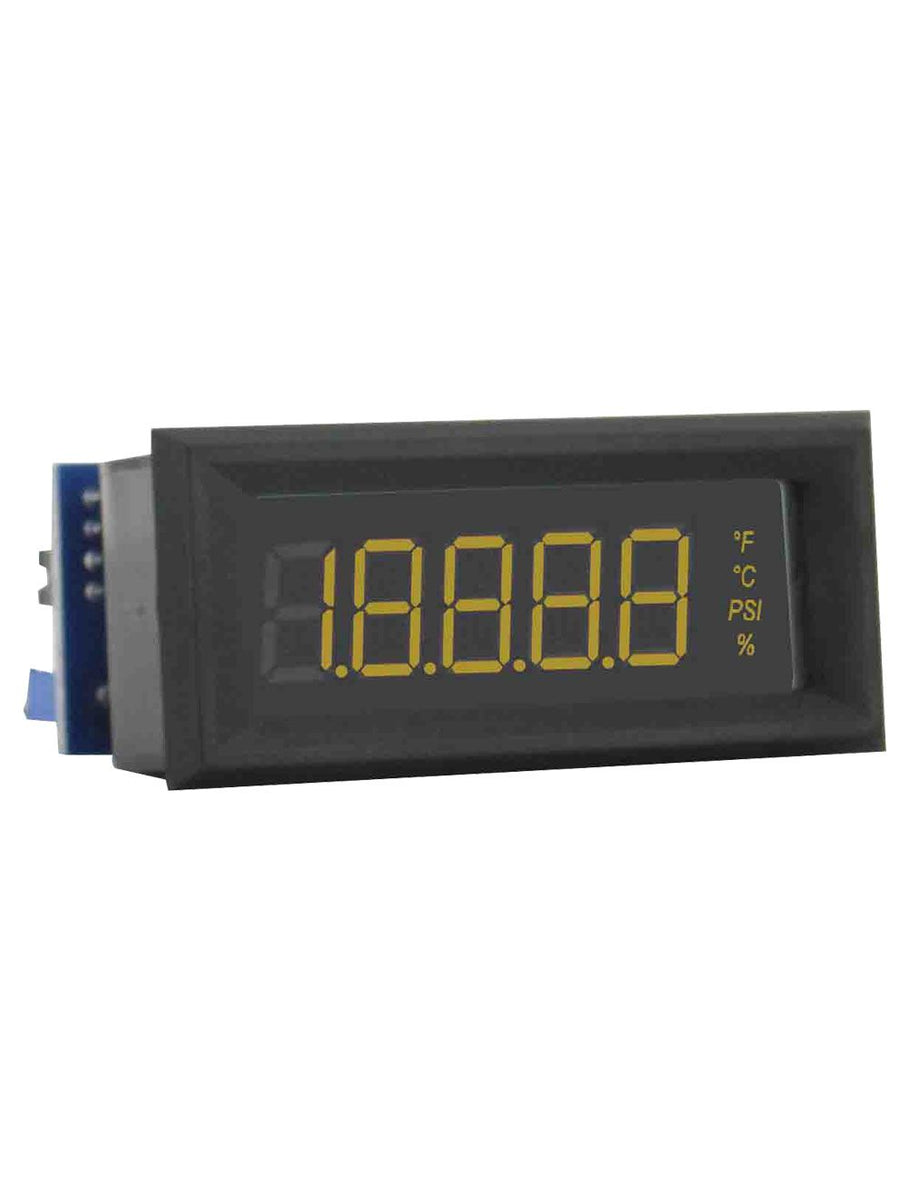

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPML-503P

Jump to: Overview & Specifications Reviews

Overview Details for DPML-503P

See catalog product page for full listing

LCD Digital panel meter with power engineering units | voltage powered 12 VDC/24 VDC | red segments.

SERIES DPML LCD DIGITAL PANEL METER

4-1/2 Digit LCD, Selectable Engineering Units, Panel Mount

The Series DPML LCD Digital Panel Meter offers a large 4-1/2 digit LCD display with a choice of red, amber or green segments for easy viewing at a distance. The meter accepts loop powered 4 to 20 mA DC input, 0 to 5 VDC, or 0 to 10 VDC voltage input. Standard features include field-selectable engineering units and decimal point positions. A 24 VDC power supply is required for the operation of the back light.

Product Applications

Used to display process values from pressure, humidity, temperature, voltage,current, watt, or power factor transmitters.

3-12 or 4-1/2 digit with 0.45" or 1" segments
Snap-in bezel mount eliminates mounting hardware for quick installation
Colored segments available in black, red, amber, green, or blue
Jumper selectable engineering units and decimal point positions

Specifications

Series: DPML LCD DIGITAL PANEL METER
Category/Type: Pressure
Type: Remote Displays
Series: DPML LCD DIGITAL PANEL METER
Inputs: DPML-4XX(P): 4 to 20 mA; DPML-5XX(P): 0 to 200 mVDC; 0 to 5 VDC; or 0 to 10 VDC.
Input Impedance: DPML-4XX(P): 300Ω nominal; DPML-5XX(P): 390Ω nominal.
Accuracy: ±(0.1% FS + 2 count).
Power Supply: DPML-4XX(P):Powered by control loop; DPML-5XX(P): 12 VDC or 24 VDC.
Backlight Power Supply: 24 VDC @35 mA typical.
Span and Zero: Adjustable (±19999 counts).
Display: 4-1/2 digits; 7 segments; 0.45" (11.4 mm) H.
Decimal Points: 4-position; user selectable.
Engineering Units: DPML-XXX: °F;°C; %; psi; DPML-XXXP: V; A; KW; PF.
Polarity: Automatic; "-" displayed.
Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 158°F (-20 to 70°C).
Mounting: Snap-in bezel mount.
Connection: Screw terminals.
Conversion Rate: 3 per second.
Warm-Up: 10 minutes typical.
Weight: 2 oz (56.7 g).
Agency Approvals: RoHS.
