DPMF | Flush mount LCD digital panel meter | loop powered 4 to 20 mA. | Dwyer
Flush mount LCD digital panel meter, loop powered 4 to 20 mA.

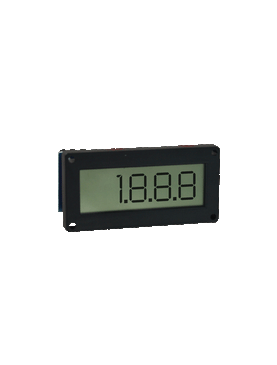

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMF
Documents and manuals
Dwyer DPMF Documents
Overview
Details for DPMF
See catalog product page for full listing
Flush mount LCD digital panel meter | loop powered 4 to 20 mA.
Model DPMF Flush Mount LCD Digital Panel Meter
3-1/2 Digit LCD, Surface Mount
THE MODEL DPMF FLUSH MOUNT LCD DIGITAL PANEL METER offers high performance and low cost in a compact package. This meter is designed with a 3-1/2 digit high contrast LCD display. The flat pack of this panel meter allows for the instrument to be mounted to any flat surface.
Product Applications
- Display process values from various transmitters
- Flush mount to any flat surface
- 3-1/2 digit with 0.5" segments
- Jumper selectable decimal point positions
- Adjustable span and zero
Specifications
- Input
- 4 to 20 mA DC.
- Input Impedance
- 300 Ω nominal.
- Accuracy
- ±(0.1% FS + 2 count).
- Power Supply
- Powered by control loop.
- Span and Zero
- Adjustable (±1999 counts).
- Display
- 3-1/2 digits; 7 segments; 0.5" (12 mm) H.
- Decimal Points
- 3-position; user selectable.
- Polarity
- Automatic; "-" displayed.
- Operating Temperature
- 32 to 122°F (0 to 50°C).
- Storage Temperature
- -4 to 158°F (-20 to 70°C).
- Mounting
- Surface mount.
- Connection
- Screw terminals.
- Conversion Rate
- 3 per second.
- Warm-Up
- 10 minutes typical.
- Weight
- 1.2 oz (34.5 g).
- Agency Approvals
- RoHS.
