DPMA-401 | LCD Digital panel meter | loop powered 4 to 20 mA | amber segments. | Dwyer
LCD Digital panel meter, loop powered 4 to 20 mA, amber segments.

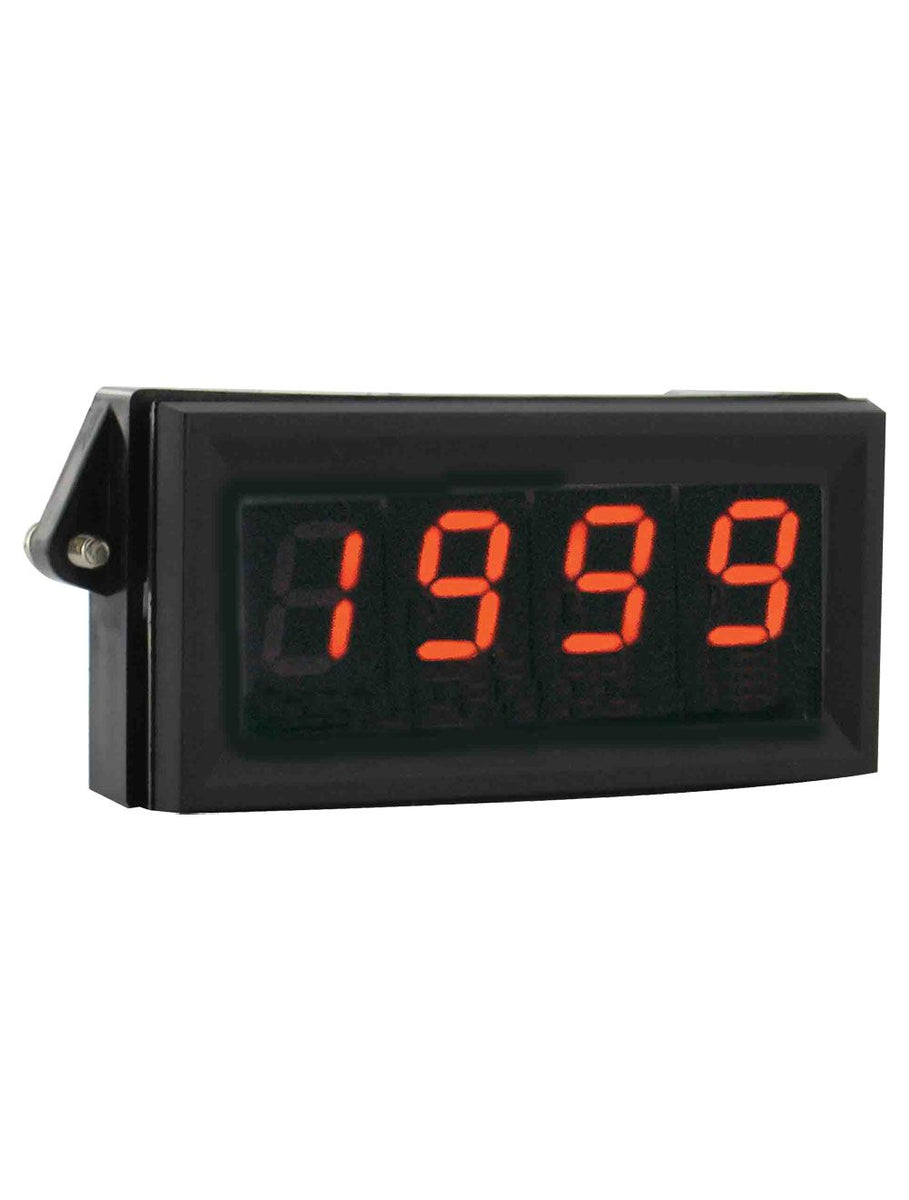

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMA-401
Documents and manuals
Dwyer DPMA-401 Documents
Overview
Details for DPMA-401
See catalog product page for full listing
LCD Digital panel meter | loop powered 4 to 20 mA | amber segments.
SERIES DPMA LCD DIGITAL PROCESS METER
1/8 DIN, Loop Powered, Large 3-1/2 Digit Display
The Series DPMA Adjustable LCD Digital Panel Meter offers a 3-1/2 digit, high contrast display for easy viewing in a standard 1/8 DIN package. This series can accept 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC inputs with a wide bipolar span and zero adjustment. A 24 VDC power supply is required to illuminate the colored segments.
Product Applications
- Display process values from pressure, humidity, temperature, voltage,current, watt, or power factor transmitters.
- 1/8 DIN panel size
- 3-1/2 digit display with 1" (25 mm) segments
- Colored segments available in black, red, amber, green, or blue
- Jumper selectable engineering units and decimal point positions
Specifications
- Series
- DPMA LCD DIGITAL PROCESS METER
- Category/Type
- Process Control
- Type
- Panel Meters/Indicators
- Series
- DPMA LCD DIGITAL PROCESS METER
- Input
- DPMA-4XX(P): 4 to 20 mA;DPMA-5XX(P): 0 to 200 mVDC; 0 to 5VDC or 0 to 10 VDC.
- Input Impedance
- DPMA-4XX(P):300Ω nominal; DPMA-5XX(P): 390KΩnominal.
- Accuracy
- ±(0.05% FS + 1 count).
- Power Supply
- DPMA-4XX(P):Powered by control loop; DPMA-5XX(P): 12 VDC or 24 VDC.
- Backlight Power Supply
- 24 VDC @35 mA typical.
- Span and Zero
- Adjustable. (±1999 counts).
- Display
- 3-1/2 digits; 7 segments; 1" (25.4 mm) H.
- Decimal Points
- 3-position; user selectable.
- Engineering Units
- DPMA-XXX: °F;°C; %; psi; DPMA-XXXP: V; A; KW; PF.
- Polarity
- Automatic; "-" displayed.
- Operating Temperature
- 32 to 122°F(0 to 50°C).
- Storage Temperature
- -4 to 158°F(-20 to 70°C).
- Mounting
- Snap-in panel mount or clamp (gasket included).
- Connection
- Screw terminals.
- Conversion Rate
- 3 per second.
- Warm-Up
- 10 minutes typical.
- Weight
- 4 oz (113.4 g).
- Agency Approvals
- RoHS.
