DCT510A | Low cost timer controller | 10 channels. | Dwyer

Low cost timer controller, 10 channels.

Brand: DwyerSKU: DCT510A

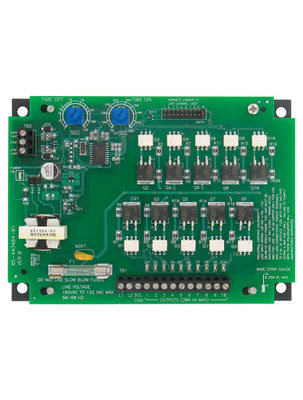

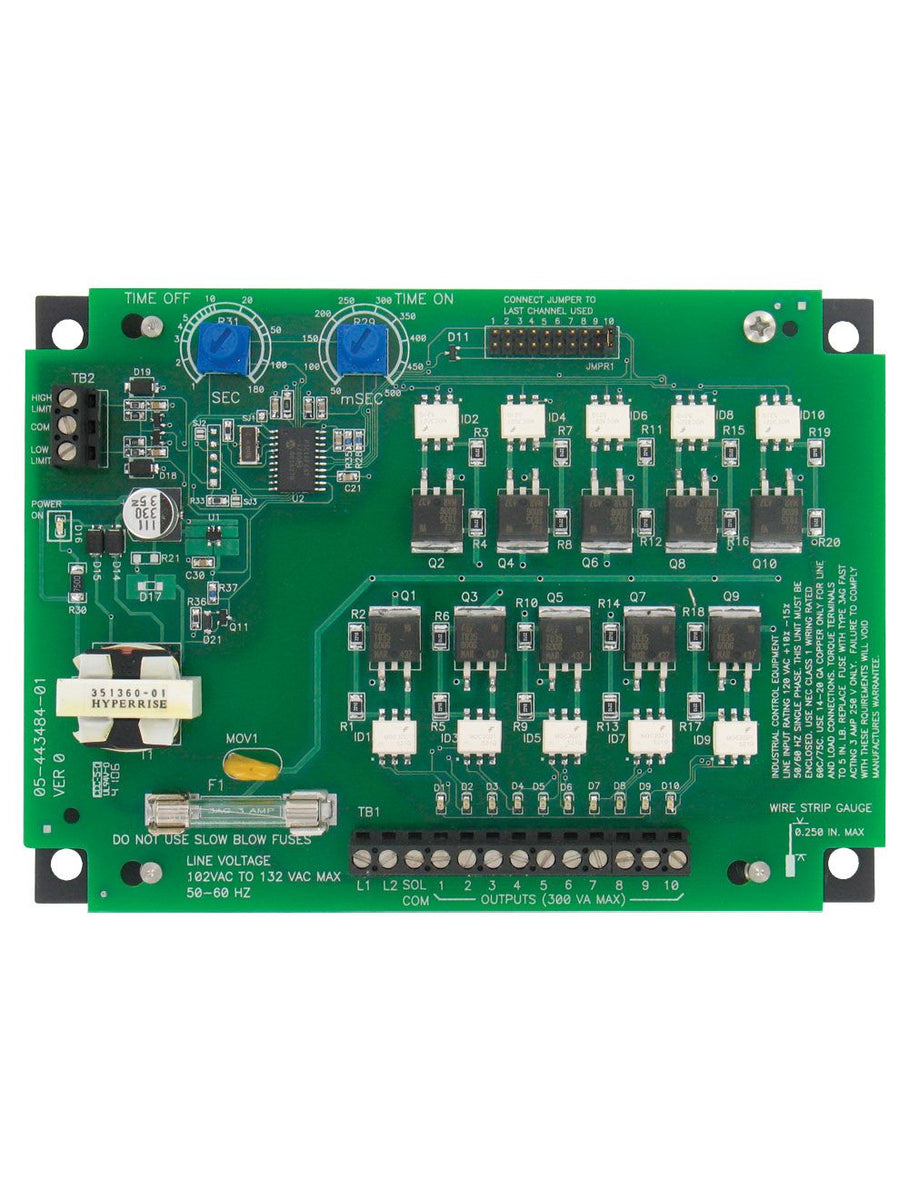

Dwyer | DCT510A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DCT510A
Jump to: Overview & Specifications Reviews

Overview Details for DCT510A

See catalog product page for full listing

Low cost timer controller | 10 channels.

Series DCT500A Low Cost Timer Controller

Compact, Easy to Use; 4, 6 or 10 Channels

Ideal for pneumatic conveying systems, the Series DCT500A Low Cost Timer Controller is designed to provide continuous or on-demand cleaning for receivers and pulse jet systems. Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall system installation cost.

The DCT500A is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers. High Limit and Low Limit control inputs are provided for use with on demand systems. The new enhanced board circuitry of the DCT500A synchronizes the on-time pulse to the power line to achieve a pulse stability of ±1 msec.

For added safety, the control circuitry including the control inputs are isolated from the line voltage.

To meet your system requirements, an optional weatherproof enclosure is available. For on demand systems, a Dwyer Series A3000 Photohelic® gage or Series 1800 Pressure Switch may be used with the DCT500A.

Product Applications

    • Dust collection
    • Pneumatic conveying
    • Cement batch plants





  • Simple and easy to use design
  • Optional weatherproof enclosure available

Specifications

Series
DCT500A Low Cost Timer Controller
Category/Type
Process Control
Type
Timer Boards
Series
DCT500A Low Cost Timer Controller
Output Channels
4; 6; & 10 channels.
Power Requirements
102 to 132 VAC 50 or 60 Hz.
Power Consumption
2.5 W.
Solenoid Supply
3A max. per channel.
Fuse
Type 3 AG; 3 A @ 250 VAC.
Temperature Limits
-40 to 140°F (-40 to 60°C).
Storage Temperature Limits
-40 to 176°F (-40 to 80°C).
On Time
50 msec to 500 msec.
On Time Accuracy
±10 msec.
On Time Stability
±1 ms.
Off Time
1 second to 180 seconds.
Off Time Accuracy
±5% of setting.
Weight
9 oz (255 g).
Agency Approvals
CE; cUL; UL.
