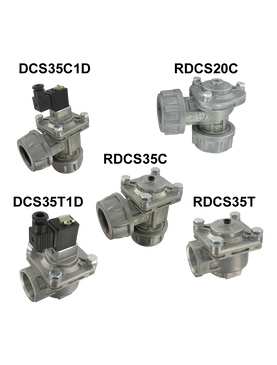

DCS35C1D | 1-1/2" diaphragm valve | integrated coil | coupling connection | 110 VAC DIN electrical connection. | Dwyer

1-1/2" diaphragm valve, integrated coil, coupling connection, 110 VAC DIN electrical connection.

Brand: DwyerSKU: DCS35C1D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DCS35C1D

Jump to: Overview & Specifications Reviews

Overview Details for DCS35C1D

See catalog product page for full listing

1-1/2" diaphragm valve | integrated coil | coupling connection | 110 VAC DIN electrical connection.

Series DCS/RDCS Springless Diaphragm Valves

Pulse Valve, Ideal for Dust Collection Systems and Bag Houses

The Series DCS/RDCS Springless Dust Collection Valves are ideal for use with the Series DCT1000 and Series DCT500 duct collection timer boards. A springless design offers not only durability, but also reliability for an exceptional cleaning pulse. Both the Series DCS and RDCS have the option for either coupling or NPT connections. The coupling connection allows for a quick and simple installation. Only the stub pipe and blowtube need to be cleaned and deburred before the valve is fit into position. The “T° Series DCS has female threaded connections and the “C° Series DCS has a coupling connection. Both the “T° and “C° versions have a 90° angle between the inlet and outlet: the most suitable configuration for pulse valve applications. The valves are offered in both integrated and remote coil configurations.

Thermoplastic polyurethane diaphragm for longer life
High flow factor for effective cleaning
Unique diaphragm design eliminates spring
Valve can be mounted in any position
Quick on & off response time

Specifications

Series: DCS/RDCS Springless Diaphragm Valves
Category/Type: Valves
Type: Valves
Valve Type: Diaphragm Pulse
Series: DCS/RDCS Springless Diaphragm Valves
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: Aluminum;Diaphragm disc: Thermoplastic polyurethane;Solenoid seals: NBR.
Other Materials: Cover: Aluminum;Body bolts: Zinc plated SS;Solenoid: Nylon.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 140°F (-20 to 60°C);Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC for DCS models.
Power Consumption: 12 W; inrush: 17 VA; Holding: 14.5 VA for DCS models.
Electrical Connection: DIN connection for DCS models.
Enclosure Rating: NEMA 4X (IP65) for DCS models.
Process Connection: See model chart on catalog page.
Mounting Orientation: Any position.
Agency Approval: CE.
