BTO360101 | Bimetal thermometer with transmitter output | 6" stem length | range 0-200°F. | Dwyer

Bimetal thermometer with transmitter output, 6" stem length, range 0-200°F.

Dwyer | BTO360101

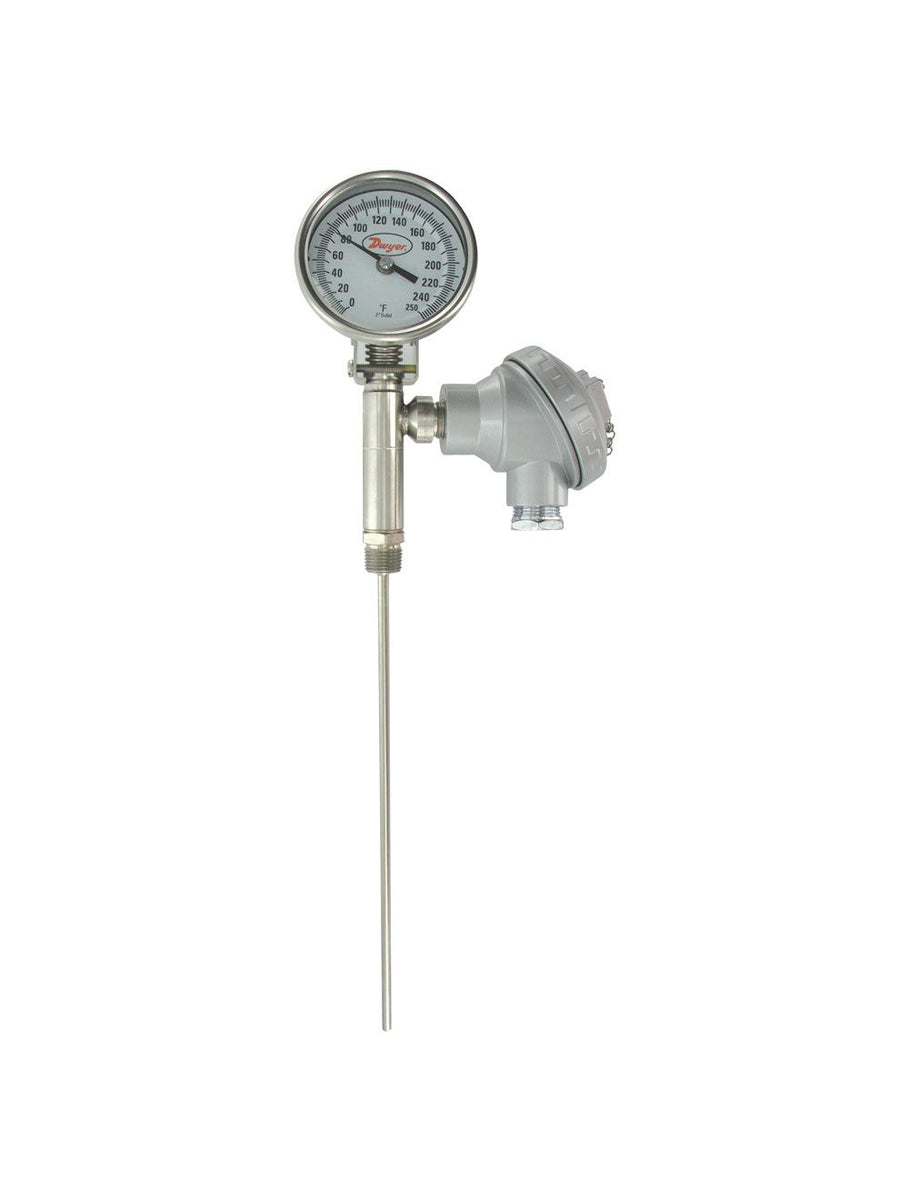

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BTO360101
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Dwyer BTO360101 Documents

Series BTO Catalog Page More Info

Overview

Details for BTO360101

See catalog product page for full listing

Bimetal thermometer with transmitter output | 6" stem length | range 0-200°F.

SERIES BTO BIMETAL THERMOMETER WITH TRANSMITTER OUTPUT

Bimetal Stem with 4 to 20 mA Output, 3" or 5" dial

The Series BTO Bimetal Thermometer with Transmitter Output eliminates the need for a separate thermometer and transmitter. By only needing one connection, the BTO series reduces installation cost and saves space. The head-mount transmitter is located in a weatherproof thermal head located on the side of the stem. The BTO series is ideal for use on power generating boilers, skid mounted compressors, and thermal oxidation systems.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Boilers
  • Compressors
  • Thermal oxidizers
  • Thermometer and transmitter in one device
  • Weatherproof construction

Specifications

Series
BTO BIMETAL THERMOMETER WITH TRANSMITTER OUTPUT
Category/Type
Temperature
Type
Transmitters
Series
BTO BIMETAL THERMOMETER WITH TRANSMITTER OUTPUT
THERMOMETER SPECIFICATIONS
Wetted Material
304 SS.
Housing Material
304 SS.
Lens
Glass.
Accuracy
±1% of FS.
Temperature Limits
Ambient: -58 to 185°F (-50 to 85°C).
Dial Size
3" or 5".
Process Connection
1/2" NPT.
Resolution
2°F (5°F for 400°F and 550°F models).
Weight
1.95 lb (885 g).
TRANSMITTER SPECIFICATIONS
Temperature Limits
Ambient: -58 to 185°F (-50 to 85°C).
Power Requirement
10 to 33 VDC.
Output Signal
4 to 20 mA.
Loop Resistance
1045 Ω.
Power Consumption
38 mA.
Enclosure Rating
NEMA 4X (IP66).
