822TD10H-UNI | Contact Configuration DPDT | Dwyer
Contact Configuration DPDT

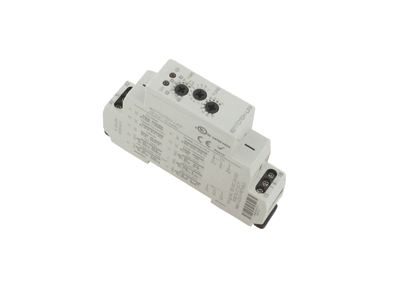

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 822TD10H-UNI
Documents and manuals
Dwyer 822TD10H-UNI Documents
Overview
Details for 822TD10H-UNI
See catalog product page for full listing
Contact Configuration DPDT
Series 820 DIN Rail Mountable Time Delay Relay
15 Amp, SPDT/DPDT Operation
The Series 820 DIN Rail Mountable Time Delay Relays can be configured in accordance with 10 different timing functions. Bright red and green LED’s indicate whether the input has been triggered and if the output is active. For greater accuracy, there are 10 time scales and a fine adjustment potentiometer that allows adjustment down to 0.1 seconds. Integral mounting ears allow the Series 820 to mount directly to a DIN rail.
Note: All purchases must be 10 units or more.
Specifications
- Series
- 820 DIN Rail Mountable Time Delay Relay
- Category/Type
- Process Control
- Type
- Relays
- Series
- 820 DIN Rail Mountable Time Delay Relay
- Operating and Load Voltage Range
- 12 to 240 VAC / VDC.
- Electrical Rating
- 15 A @ 240 VAC; 24 VDC.
- Timing Rating
- >Functions available: A; B; C; D; E; F; G; H; I; J (10 for total);Time ranges: 0.1 sec to 10 days.
- Electrical Connection
- Screw terminals.
- Switching Operation
- SPDT or DPDT.
- Temperature Limits
- >Storage: -22 to 158°F (-30 to 70°C);Operation: -4 to 131°F (-20 to 55°C).
- Power Consumption
- 3 VA (AC) or 1.7 W (DC).
- Housing
- Plastic polycarbonate.
- Weight
- 2.3 oz (65 g).
- Agency Approvals
- CE; RoHs; cUL; UL.
