645-0 | Wet/wet differential pressure transmitter | range 0-1 psid. | Dwyer

Wet/wet differential pressure transmitter, range 0-1 psid.

Brand: DwyerSKU: 645-0

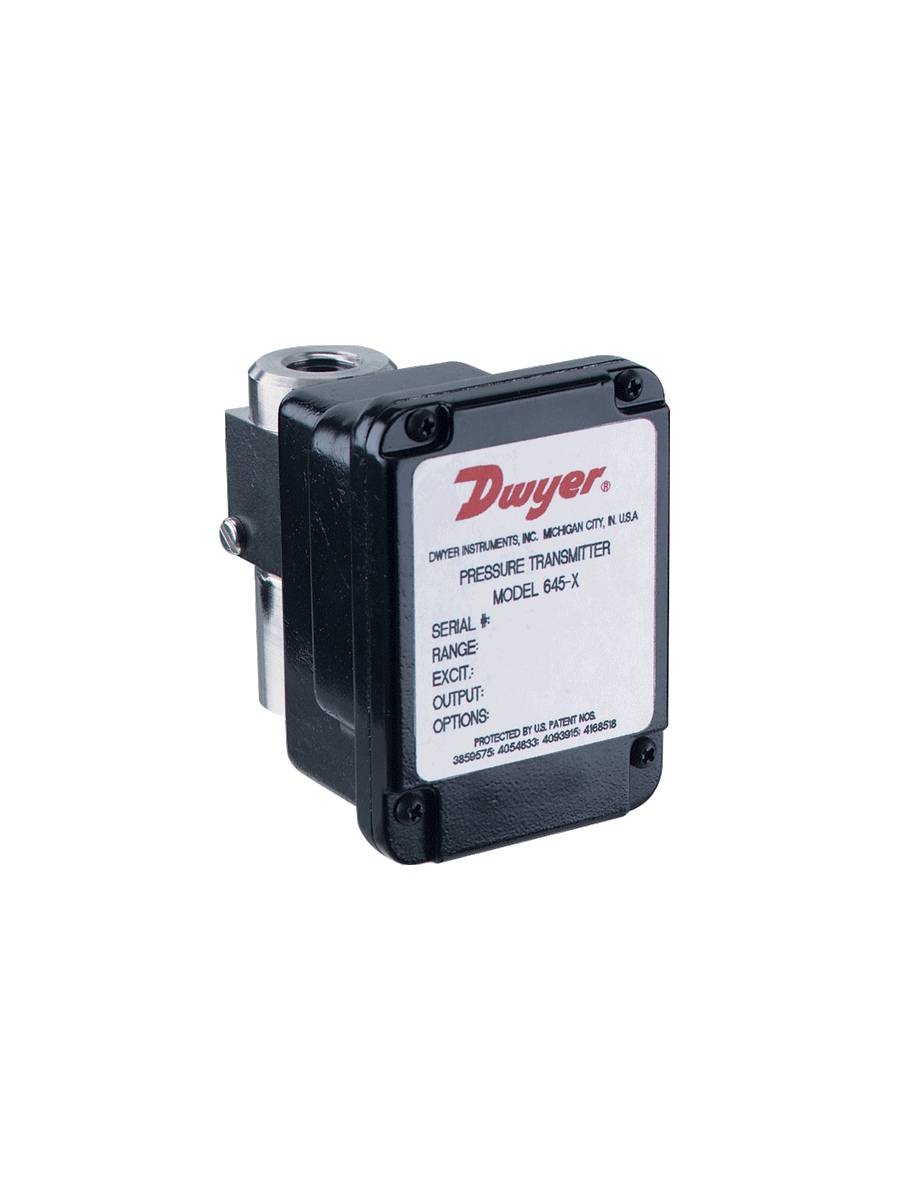

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 645-0

Jump to: Overview & Specifications Reviews

Overview Details for 645-0

See catalog product page for full listing

Wet/wet differential pressure transmitter | range 0-1 psid.

Series 645 Wet/Wet Differential Pressure Transmitter

±0.25% Accuracy, Quick Response, 2-Wire Design

Series 645 Wet/Wet Differential Pressure Transmitters are designed for use with compatible gases and liquids which can be applied to both the pressure and reference ports. Quick response capacitance sensor delivers a 4 to 20 mA output signal proportional to differential pressure with ±.25% accuracy. The Series 645 transmitters are ideal for process control, filter condition monitoring, refrigeration equipment, pump speed control, HVAC equipment, and liquid level measurement. For ease of installation and maintenance, order optional 3-valve manifold assembly. Bleed ports allow for total elimination of air in the line and pressure cavities.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Process control
Filter monitoring
Refrigeration equipment
Pump speed control
HVAC equipment
Liquid level measurement

Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
Optional 3-way valve manifold supports simplifying installation or removal of transmitter without interrupting process

Specifications

Series: 645 Wet/Wet Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 645 Wet/Wet Differential Pressure Transmitter
Service: Compatible gases or liquidson both pressure and reference sides.
Wetted Materials: 17-4 PH stainless steel; 300 Series stainless steel;fluoroelastomer and silicone O-ringsand bleed screw seals.
Accuracy: ±0.25% FS (RSS).
Temperature Limits: Operating: 0 to175°F (-22 to 80°C); Storage: -65 to260°F (-54 to 126°C).
Pressure Limits: (High side) 1 to 5psi: 20 x FS; 10 to 25 psi: 10 x FS; 50psi: 5 x FS; 100 psi: 2.5 x FS; (lowside) 2.5 x FS.
Thermal Effects: (includes zero andspan) ±0.02% FS/°F; 30 to 150°F (-1 to65°C).
Power Requirements: 11 to 30 VDC.
Output Signal: 4 to 20 mA; 2-wire.
Zero and Span Adjustments: Adjustable; ±1 mA; non-interactive.
Response Time: 30 to 50 ms.
Loop Resistance: 0 to 1000Ω.
Electrical Connection: Barrier stripterminal block with conduit enclosureand .875" (22 mm) diameter conduitopening.
Process Connection: 1/4"-18 female NPT.
Housing: Stainless steel/aluminum;NEMA 4X (IP56).
Weight: 14.4 oz (0.4 kg).
Agency Approvals: CE.
: 3-Valve Manifold Assembly
Manifold: Brass.
Valve Type: 90° on/off.
Process Connection: 1/4"-18 female NPT.
