610-00C-DDV | Low differential pressure transmitter | range ±0.05" w.c. | Dwyer

Low differential pressure transmitter, range ±0.05" w.c.

Brand: DwyerSKU: 610-00C-DDV

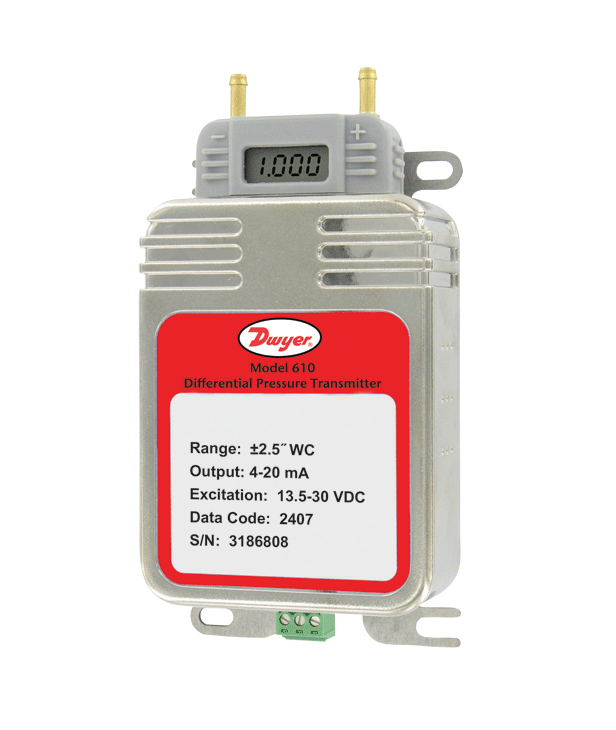

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 610-00C-DDV

Jump to: Overview & Specifications Reviews

Overview Details for 610-00C-DDV

See catalog product page for full listing

Low differential pressure transmitter | range ±0.05" w.c.

Series 610 Low Differential Pressure Transmitter

Ideal for Clean Rooms, Easy to Field Calibrate with Security Key

The Series 610 Low Differential Pressure Transmitters are capable of measuring the pressures and flow of air or non-conducting gases at high resolutions. Designed specifically for clean rooms, isolation rooms, and other critical environments, the Series 610 is ideal for situations when accurate and reliable pressure monitoring is essential. Easy access pressure ports and electrical connections, removable process heads, and detachable terminal blocks make for fast and easy installation. The Series 610 transmitters are available for air pressure ranges as low as 0.1 in w.c. full-scale. The Series 610 transmitters can be ordered as either ±0.25% or ±0.5% FS accuracy, base mount or din rail mount and the option of a digital read out display. In addition, a calibration key can be ordered that allows the user to set zero and span. One key will work on multiple transmitters.

Calibration Option available under Accessories.

Ranges down to 0.1" w.c. with 0.25% or 0.5% F.S. accuracy
Removable process head for simplified installation
Secure operation ensured with calibration only possible via separate calibration key
Calibration certificate included with ± 0.25% accuracy models

Specifications

Series: 610 Low Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 610 Low Differential Pressure Transmitter
Service: Air or similar non-conducting gases.
Accuracy: ±0.25% or ±0.5% F.S.
Stability: ±0.5%/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C).
Pressure Limits: 2 psi (0.137 bar).
Thermal Effect: 0.5% FS.
Power Requirements: 13.5 to 30 VDC.
Output: 4 to 20 mA.
Loop Resistance: 800 ohms max.
Current Consumption: 25 mA.
Zero and Span Adjustments: External security key pendant.
Response Time: 0.02 to 0.04 seconds.
Electrical Connections: Detachable screw terminal connector.
Process Connections: 3/16" O.D. barbed brass fittings on removable process head.
Enclosure Rating: Fire retardant ABS.
Mounting Orientation: Vertical.
Weight: 9 oz (255 g).
Agency Approvals: CE.
