607-0B | Differential pressure transmitter | range .10-0-.10" w.c. | Dwyer

Differential pressure transmitter, range .10-0-.10" w.c.

Brand: DwyerSKU: 607-0B

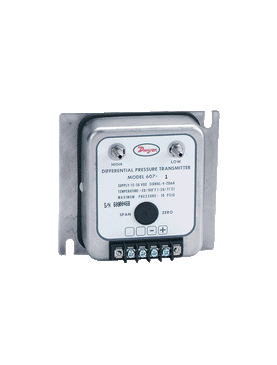

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607-0B

Jump to: Overview & Specifications Reviews

Overview Details for 607-0B

See catalog product page for full listing

Differential pressure transmitter | range .10-0-.10" w.c.

Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.

Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Product Applications

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
Stainless steel housing meets standards for lab and clean room applications

Specifications

Series: 607 Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 607 Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% or ±0.25% FS.
Stability: ±0.5% FS/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C); 10 to 95% RH.
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 35 to 135°F (2 to 57°C).
Thermal Effects: ±0.015% F.S./°F (zero and span).
Power Requirements: 12 to 36 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
Response Time: 250 ms max.
Loop Resistance: 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
Current Consumption: 3.6 mA (min).
Electrical Connections: Screw terminals.
Process Connections: Barbed stainless steel for 3/16" I.D. tubing.
Housing: 300 Series stainless steel (NEMA 2).
Weight: 1.04 lb (472 g).
Agency Approvals: CE.
