160S-48PM | Permanent mount "S" type stainless steel Pitot tube | 48" insertion length. | Dwyer

Permanent mount "S" type stainless steel Pitot tube, 48" insertion length.

Brand: DwyerSKU: 160S-48PM

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160S-48PM

Jump to: Overview & Specifications Reviews

Overview Details for 160S-48PM

See catalog product page for full listing

Permanent mount "S" type stainless steel Pitot tube | 48" insertion length.

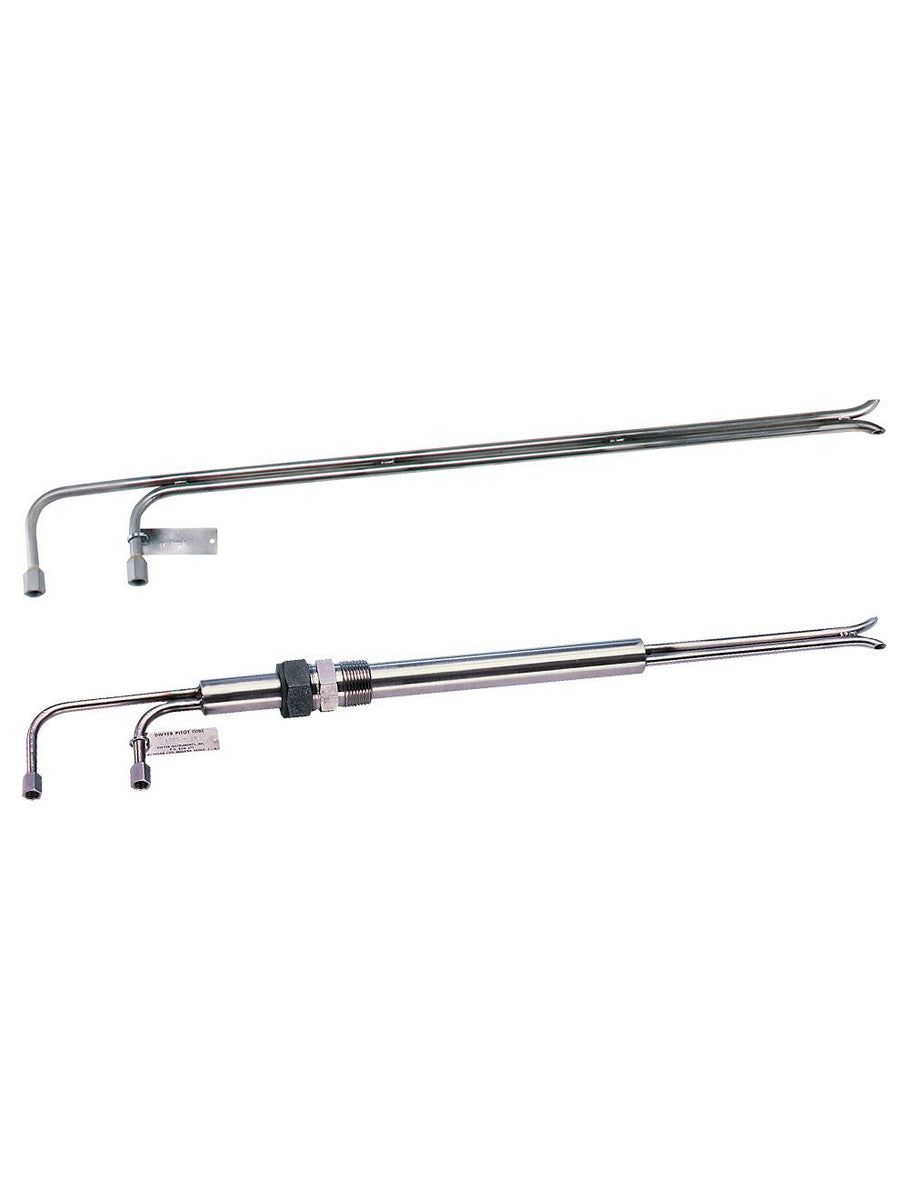

Series 160S "S" Type Stainless Steel Pitot Tube

Large, Open Tip Design Resists Fouling; Optional Permanent Mount Models

The Series 160S "S" Type Stainless Steel Pitot Tube is designed specifically for flow measurement of dirty, particulate laden air or gas streams typical in smoke stack and other environmental testing. Total and static pressure tubes are precisely aligned and welded together every 6 inches for maximum accuracy, strength, and long term durability. Permanent mount (PM) models include a 1" welded stainless steel sleeve and adjustable compression fitting with 1" MNPT mounting threads.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Product Applications

Monitor or control air velocity or air flow in particulate laden air streams

Large 5/16" stainless steel tubing resists plugging under harsh conditions
1/8" FNPT connections are permanently welded to unit
Able to be used in up to 1500°F (815.5°C) and 100 psig (6.89 bar)
