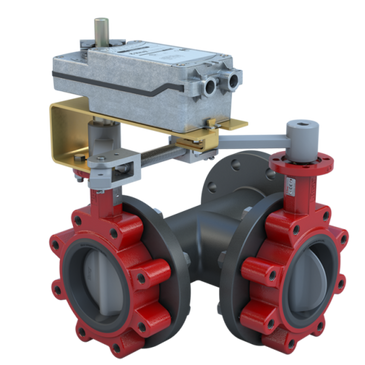

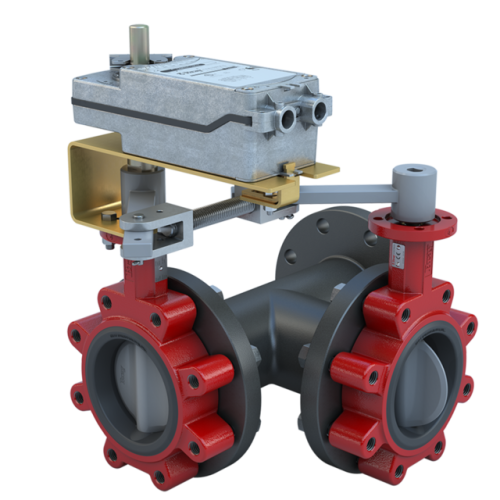

3LSE-02S36/DS120-180-A | 2" 3-Way Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 87 | Damper & Valve actuator | 120/240 Vac | 177 lb-in | on/off | Spring Return | SW | Bray

Brand: BraySKU: 3LSE-02S36/DS120-180-A

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3LSE-02S36/DS120-180-A

Product: 3LSE-02S36/DS120-180-A
Valve Size: 2"
2-Way / 3-Way: 3-Way
Valve Product Type: Butterfly Valve
Valve Position: Master N.C. Right/Slave N.O. Left (6)
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 87
Actuator Control Signal: On/Off
Actuator Action: Spring Return
Fail Position: Fail Open Left to Branch
Actuator Features: Auxiliary Switches
Actuator Power Supply: 120/240 VAC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 175
Weight: 50.6
