3LNE-25S2N/DMS24-180-A-WS | 2.5" Lugged Butterfly Valve Resilient | ANSI Class 125/150 | DI body | NDI Disc | CV 98 | Normally Open | 24 Vac/Dc | 177 lb-in | modulating | Spring Return | SW | Bray

Brand: BraySKU: 3LNE-25S2N/DMS24-180-A-WS

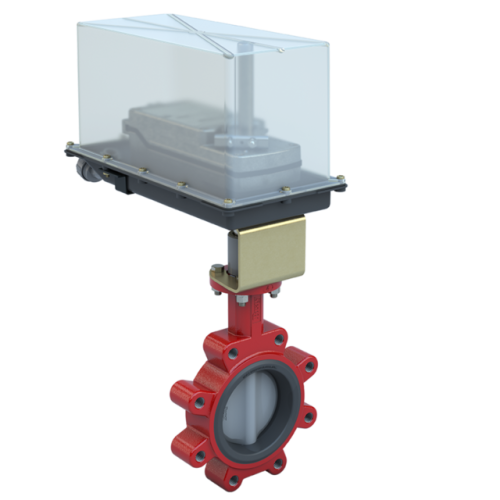

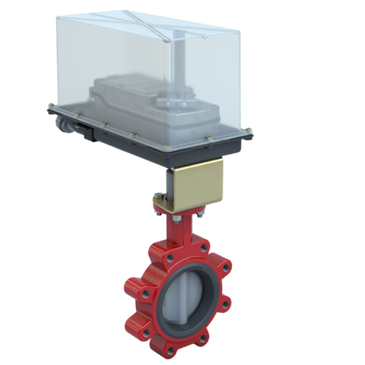

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3LNE-25S2N/DMS24-180-A-WS

Product: 3LNE-25S2N/DMS24-180-A-WS
Valve Size: 2.5"
2-Way / 3-Way: 2-Way
Valve Product Type: Butterfly Valve
Valve Position: Normally Open
Valve End Connection: ANSI Class 150 Lugged
Assembly Cv: 98
Actuator Control Signal: Modulating
Actuator Action: Spring Return
Fail Position: Fail Open
Actuator Features: Auxiliary Switches
Actuator Power Supply: 24 VAC/DC
Actuator Conduit Connection: 3/8" Flex - Convert to 1/2" NPT with M9104-100E & 985-008
Actuator Area Classification: IP54;NEMA 2
Close Off Pressure: 175
Weight: 22.4
