128004 | Retrofit Damper | 4" Round Retrofit Motorized Damper | Braeburn
Overview
Details for 128004

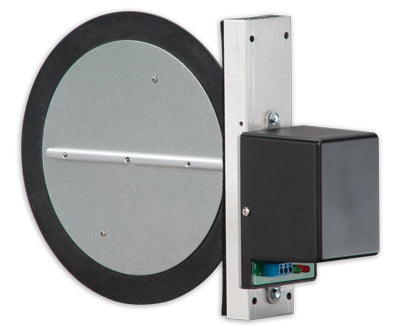

Retrofit Damper | 4" Round Retrofit Motorized Damper
Braeburn PO/PC Round Zone Dampers are used to control the volume of air that will be distributed to a zoned area. With three wire installation and a high torque motor, Braeburn zone dampers provide the quality and durability you have come to expect from the value leader in indoor controls.
Quick and Easy Installation Simply cut a one inch slot along the length of the duct. Slide the damper in and secure with screws. Resiliant gasket helps provide a positive seal.
Product Features and Benefits
- Power Open, Power Close Operation
- Heavy Duty Galvanized Construction
- Dual LEDs for Positive Indication of Open to Close
- Slip-In Design for Quick Installation
Architectural Specifications
The Round Retrofit Power Open / Power Close Damper shall be Braeburn Series 1280XX where XX indicates damper diameter (04, 05, 06, 07, 08 and 10 inches). The damper shall be powered directly from zone panel 24 VAC damper terminals. A shared common terminal along with power open and power closed terminals shall be provided for damper control. In the event of a power failure, no readjustment shall be required. The drive motor shall require 4 VA of power at 24 VAC.
Specifications
| Item Number | 128004 |
| Brand | Braeburn |
| Motorized | Yes |
| Shape | Round |
| Size (in) | 4 |
| Spring Return | Non-Spring Return |
| Type | Retrofit Damper |
